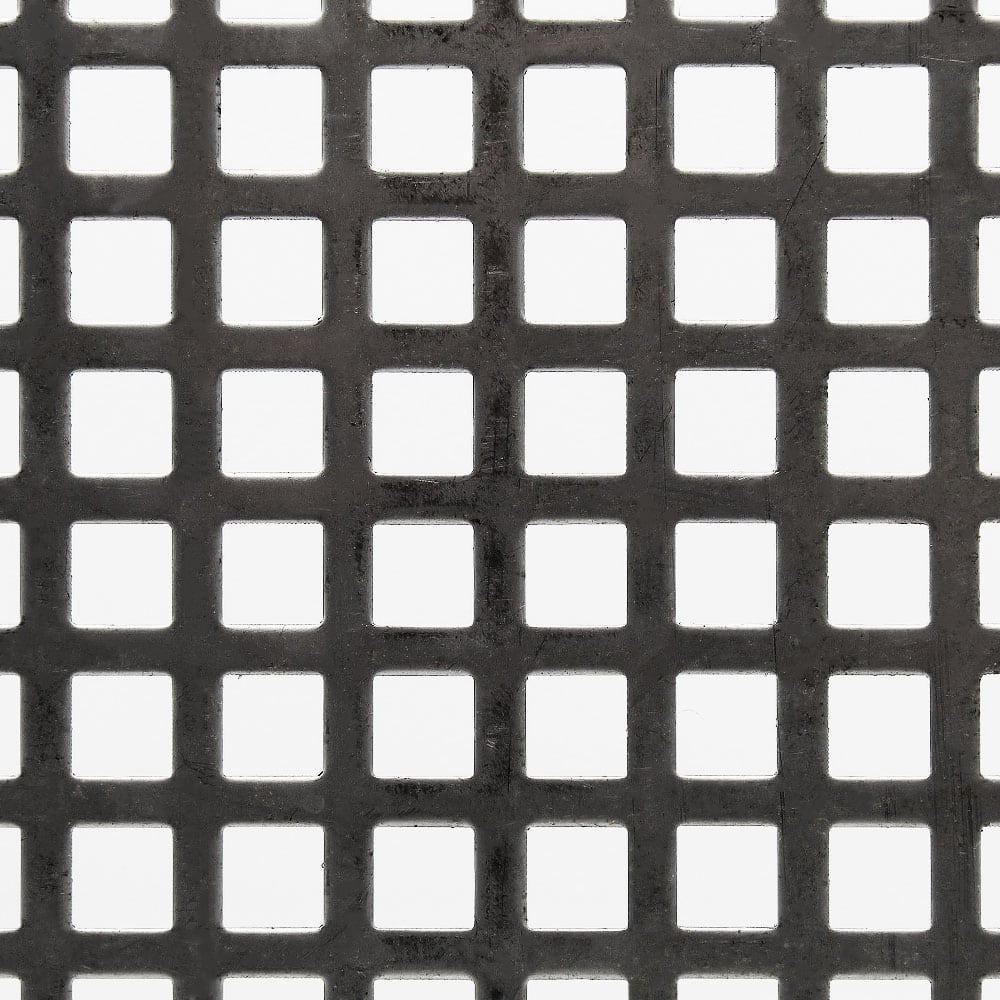

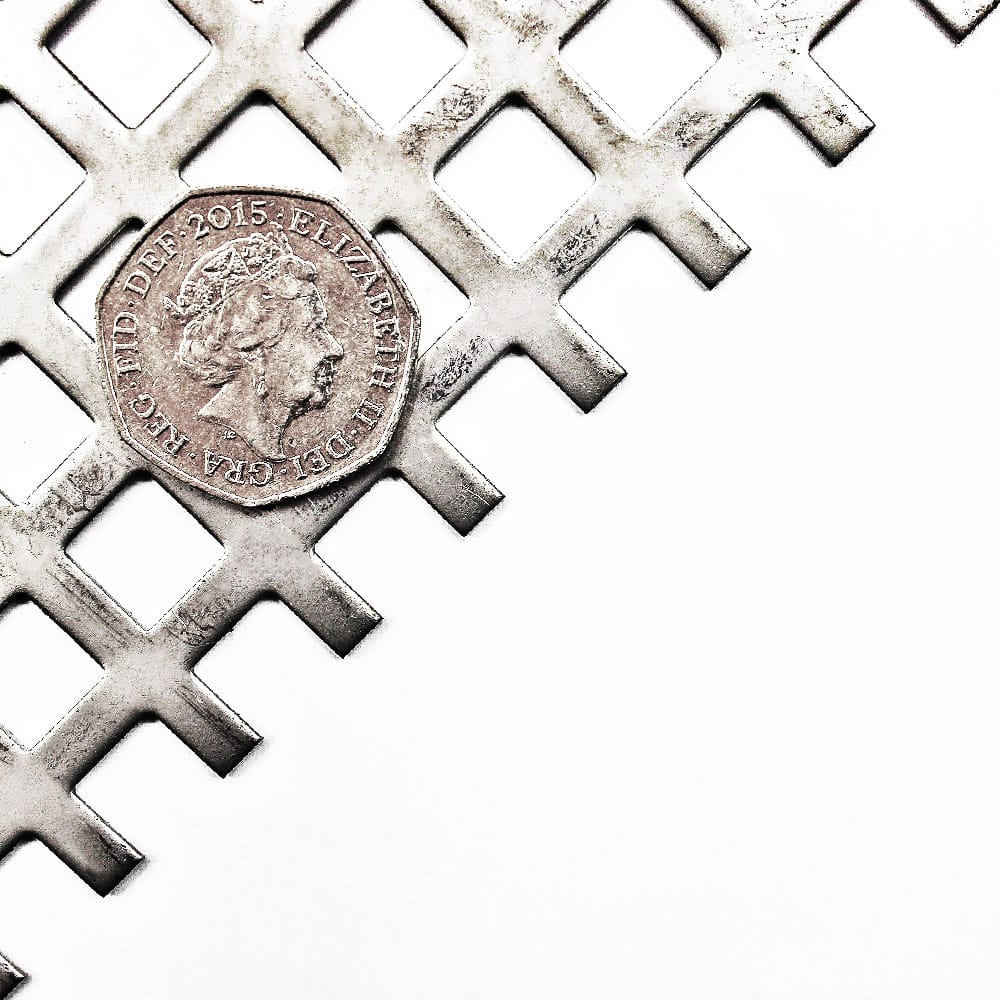

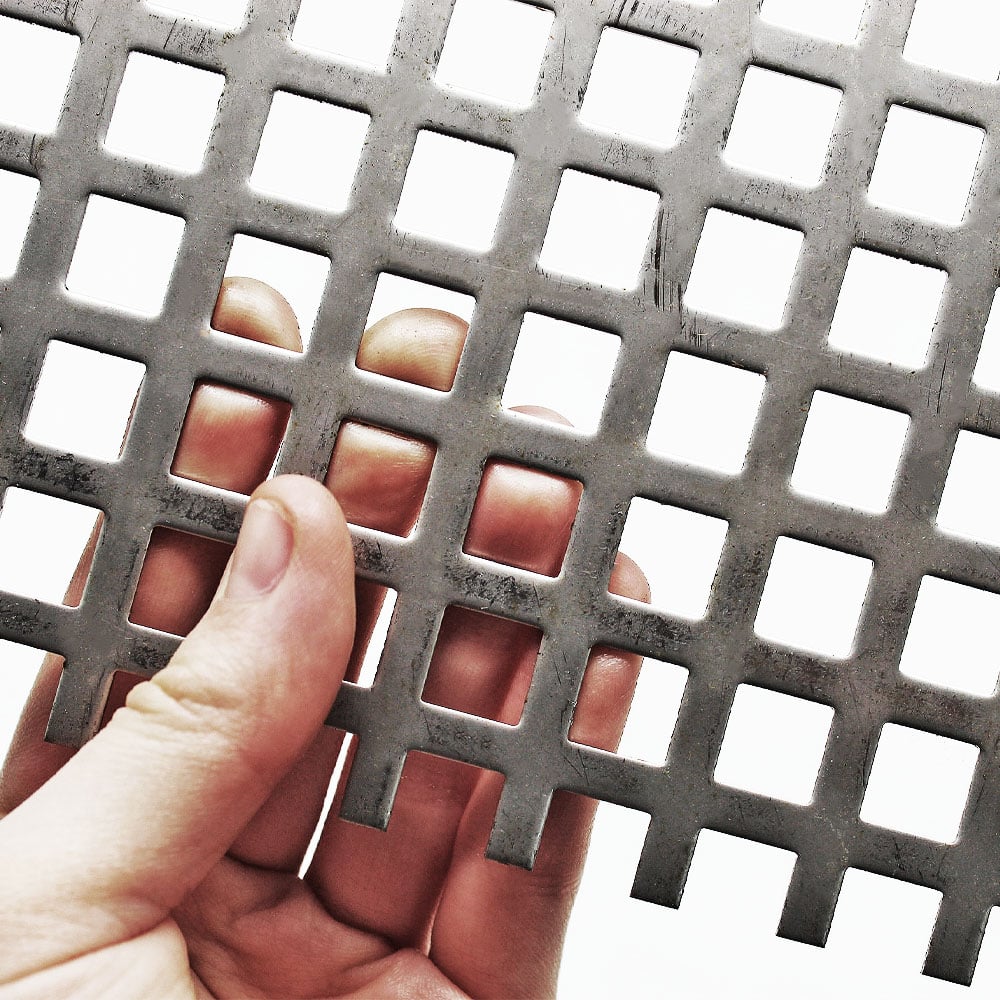

10mm Square Hole – 15mm Square Pitch – 1.5mm Thickness – SS304 Grade – Perforated Metal Mesh

Stainless Steel Perforated Mesh

Specification

Top quality stainless steel perforated mesh supplied straight from Warrington, UK.

Due to its durability, versatility and corrosion resistance, stainless steel perforated mesh is a popular choice for industrial and commercial applications. Speciality Metals produces SS304 grade perforated metal mesh with a hole size of 10mm, a pitch of 15mm, a thickness of 1.5mm and a hole size of 15mm square. Aside from possessing excellent hygiene properties, this mesh is also malleable and can be customised easily. Moreover, it requires little maintenance, making it an ideal option for facilities looking to reduce maintenance costs. Overall, 304 grade stainless steel perforated mesh is a reliable and long-lasting metal mesh solution.

Specification

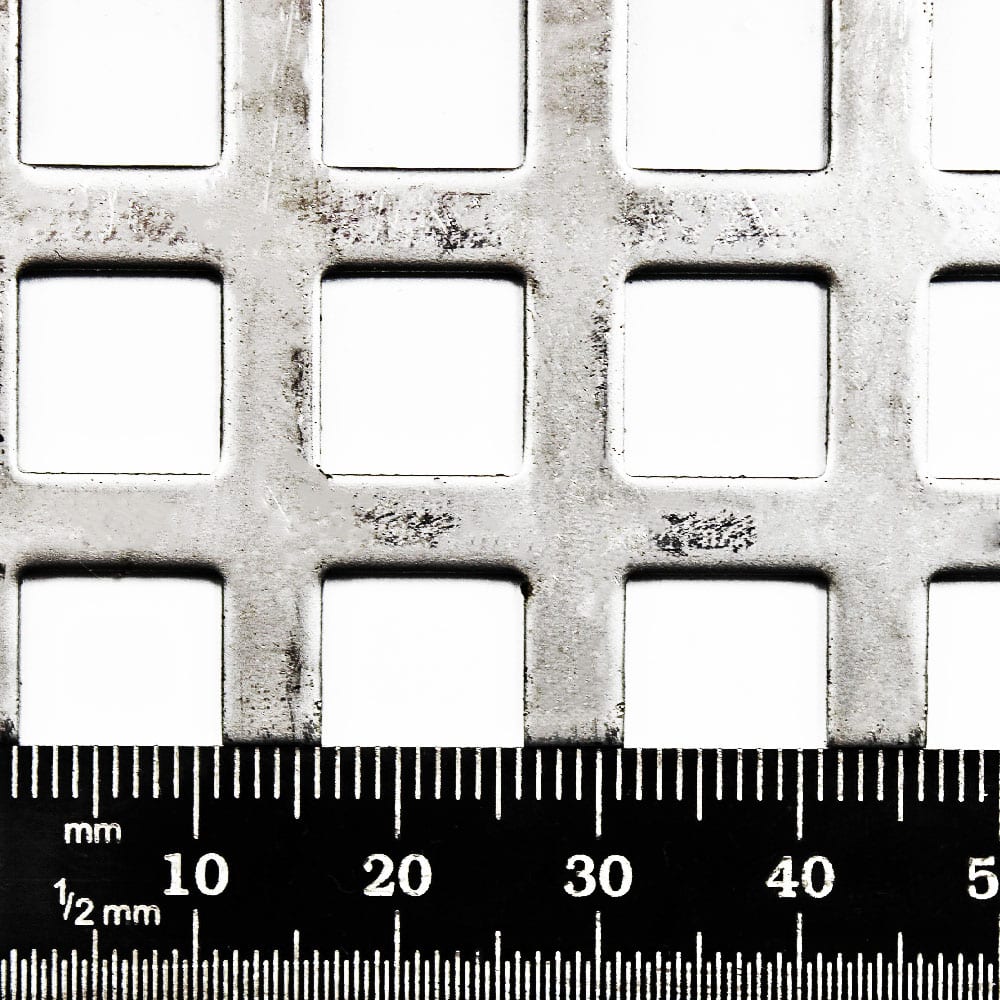

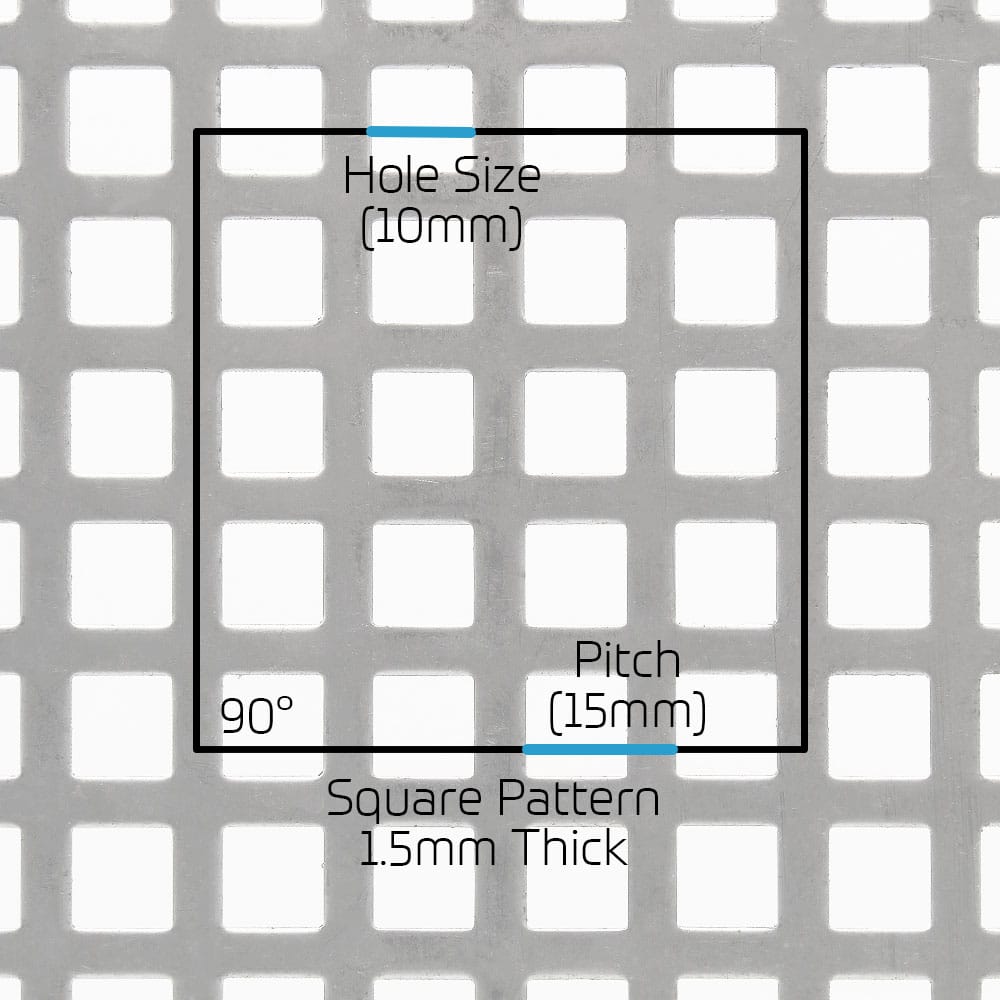

• Aperture – 10mm Square Hole
• Pitch – 15mm
• Web – 5mm

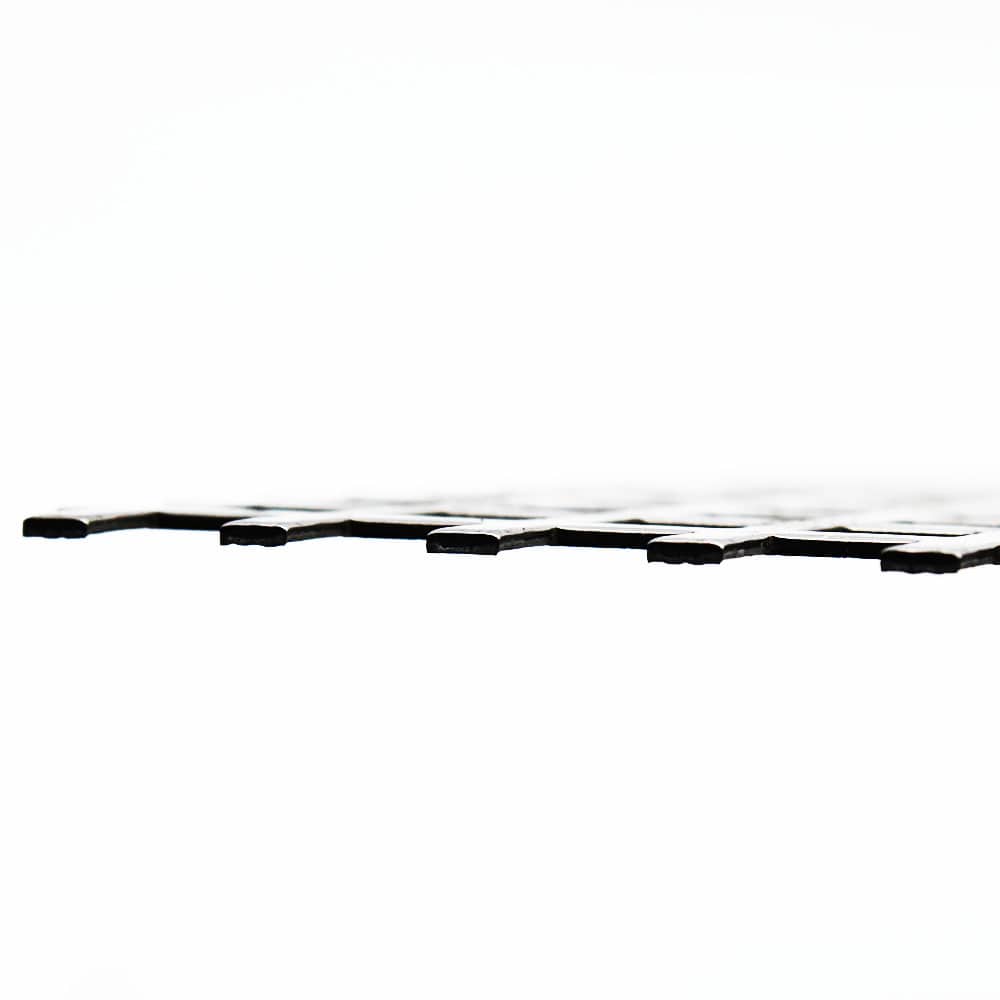

• Sheet Thickness – 1.5mm
• Metal – Stainless Steel 304 Grade
• Open Area – 44.44%

Speciality Metals are the best suppliers for you because:

• FREE UK delivery on all orders
• Order dispatch within 24 hours of order
• Located in Warrington, UK which is the UK home of mesh and metals
• Our experienced staff are experts in the mesh market and care personally about your customer experience

Speciality Metals is a trusted UK based distributor of fasteners, sheet metal, flat bar and round tube. We specialise in rapid delivery to any location around the country. Our team of experienced, friendly staff are at hand at all times to process your order.



---

FAQs About This Product

Is Stainless Steel 3o4 Perforated Sheet Magnetic?

Stainless Steel 304 is generally considered to be non-magnetic in its annealed condition. However, it may become slightly magnetic when cold-worked or subjected to certain manufacturing processes. The reason for its non-magnetic nature is its austenitic structure, which is formed due to the presence of nickel in the alloy. This nickel content stabilizes the austenitic phase at room temperature, making it non-magnetic.

If the non-magnetic property is critical for your application, it’s essential to confirm this characteristic through testing, especially if the material has been cold-worked or welded. Cold-working or welding could alter the microstructure, inducing some degree of magnetism. For applications where a completely non-magnetic material is necessary, you may want to consider other stainless steel grades designed explicitly for those conditions.

Can Stainless Steel 304 Perforated Mesh be Used for Acoustic Applications?

Yes, Stainless Steel 304 Perforated Mesh can be used for acoustic applications. Its perforated design allows for the effective absorption and diffusion of sound waves, making it a suitable material for acoustic panels, sound barriers and baffles. The corrosion-resistant properties of 304-grade stainless steel also make it an excellent choice for environments where durability and long-term performance are essential, such as in outdoor sound barriers or in areas with high humidity.

The effectiveness of the material in acoustic applications depends on various factors, including the hole size, open area percentage, and the thickness of the sheet. These factors can be tailored to meet specific acoustic performance requirements. Stainless Steel 304 Perforated Mesh is often used in combination with other materials like acoustic foam or mineral wool to enhance sound absorption properties.

Additionally, its aesthetic appeal and mechanical strength make it a versatile option that can be used in both functional and decorative acoustic applications, such as in auditoriums, conference rooms and industrial settings.

What is the Difference between 304 and 316 Grade Stainless Steel?

Both 304 and 316 grades of stainless steel are widely used, but they have some distinct differences in composition and properties that make them suitable for specific applications. Here’s a rundown of the key differences:

Composition:

• 304 Stainless Steel: Composed primarily of iron, 18-20% chromium and 8-10% nickel.
• 316 Stainless Steel: Also contains iron, 16-18% chromium, 10-14% nickel, but it includes 2-3% molybdenum.

Corrosion Resistance:

• 304 Stainless Steel: Offers good corrosion resistance and is sufficient for most general-purpose applications, such as in residential kitchens, architectural elements and food processing equipment.
• 316 Stainless Steel: Provides superior corrosion resistance due to the addition of molybdenum. It is especially resistant to pitting and crevice corrosion in chloride environments, making it suitable for marine applications or in chemical processing.

Cost:

• 304 Stainless Steel: Generally less expensive because it does not contain molybdenum.
• 316 Stainless Steel: Typically more expensive due to its enhanced corrosion resistance and the addition of molybdenum.

Strength:

• Both grades have similar mechanical properties, but the 316 grade can offer higher strength and hardness due to its composition.

Weldability:

• Both 304 and 316 are readily weldable, but 316’s additional molybdenum content can offer better weld quality and can be more suitable for high-stress applications.

Magnetic Properties:

• 304 Stainless Steel: Generally non-magnetic in annealed condition but may become slightly magnetic when cold-worked.
• 316 Stainless Steel: Also generally non-magnetic and shares similar magnetic properties to 304.

Applications:

• 304 Stainless Steel: Used in kitchen appliances, architectural trim, sinks, food processing equipment and brewing equipment.
• 316 Stainless Steel: Used in marine applications, chemical processing, pharmaceuticals, medical implants and high-corrosion environments.



---
