200A Double-Sided Multirotor ESC Power Distribution Board

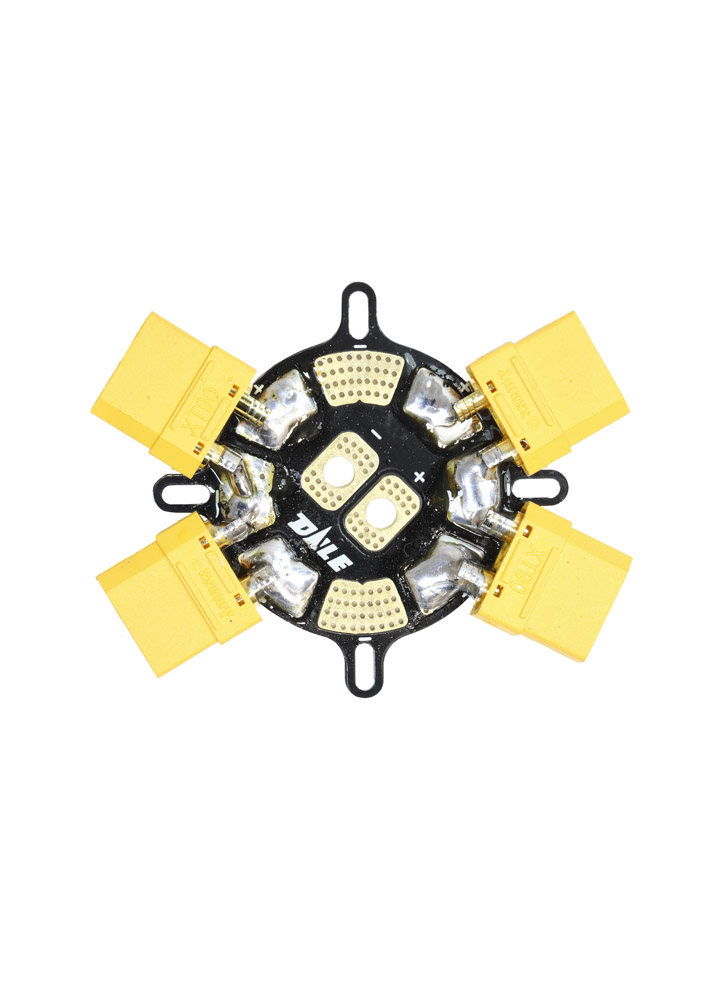

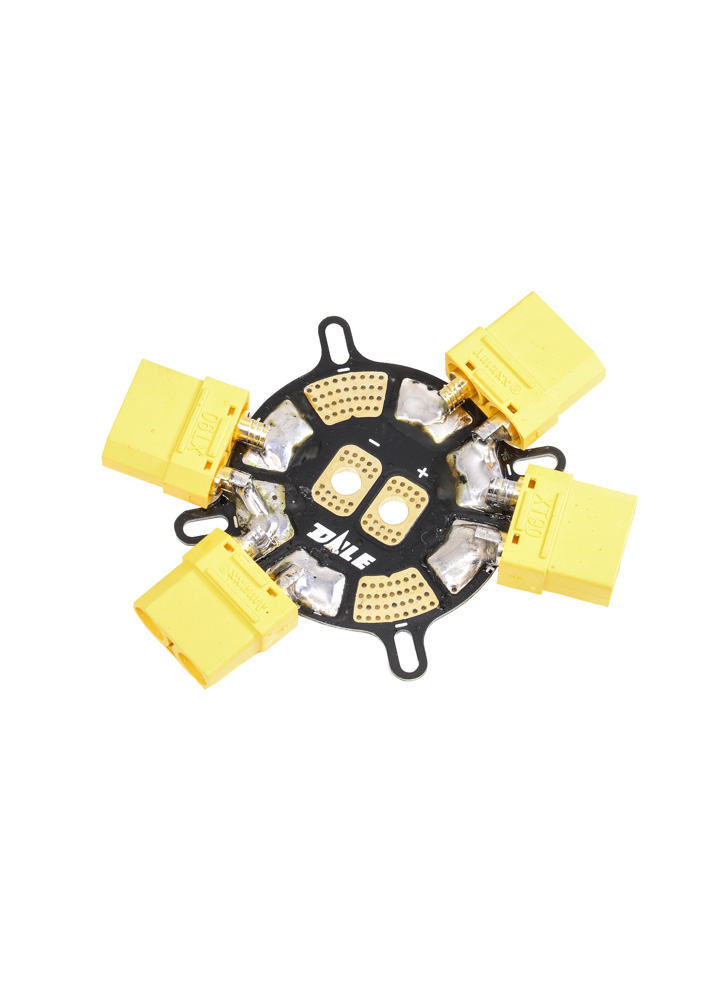

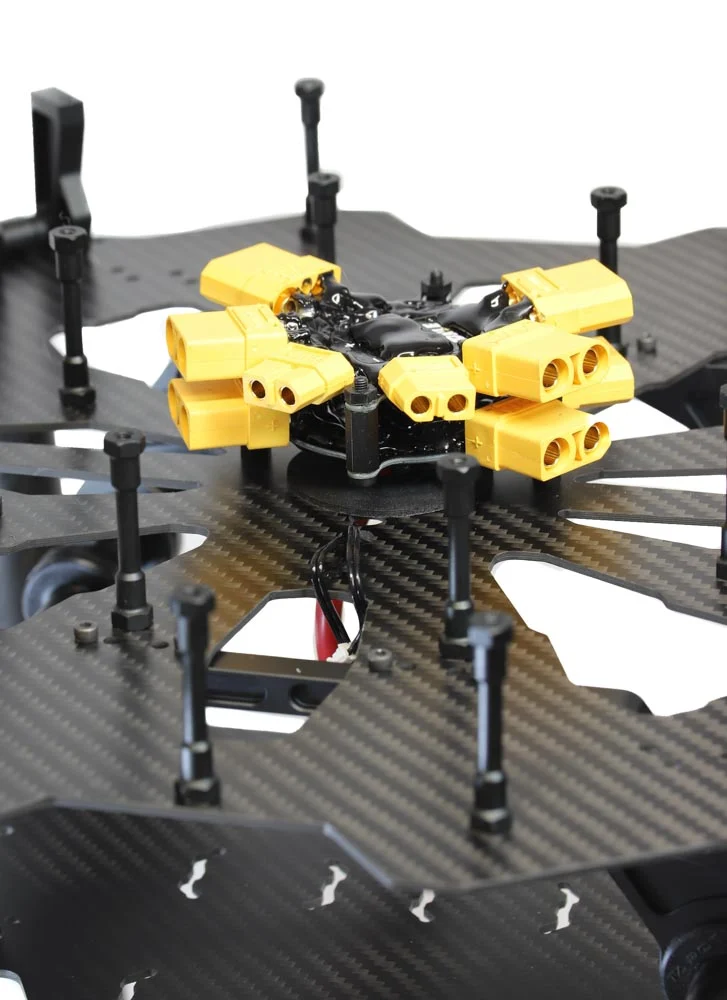

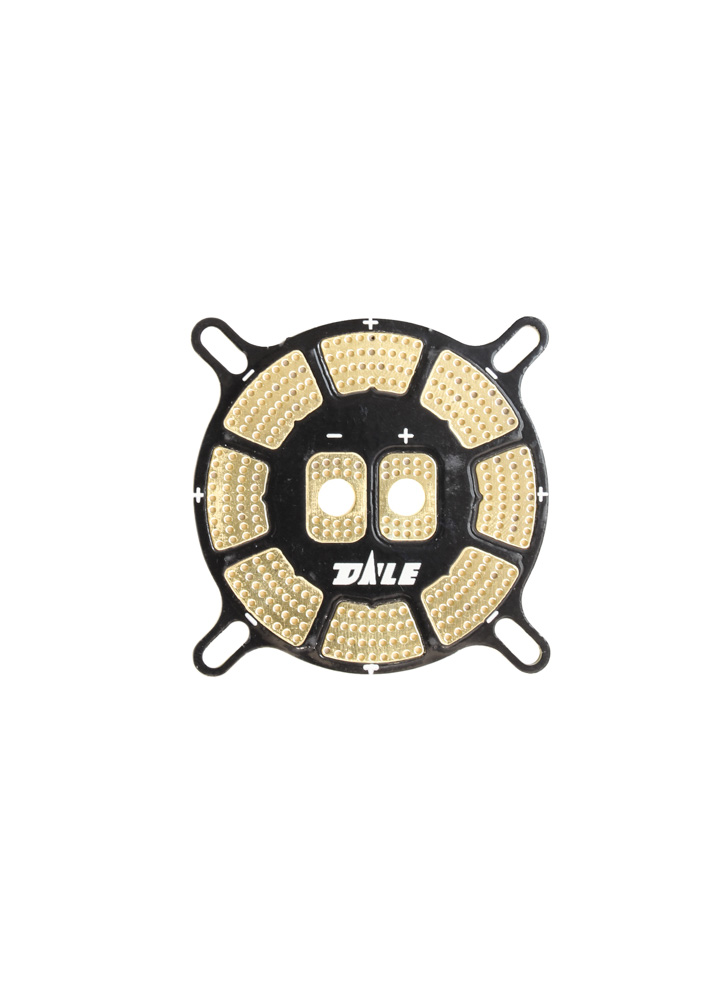

This simple Power Distribution Board (PDB) features 8 outputs (4 +/- pairs on each side of the PCB) and has a high current rating, 200Amps. The board has a well-designed layout with the power input in the centre and the outputs circling the board. If you find that you need more connections or greater current handling, you can stack two boards together (as pictured). Lastly the PDB features large contact areas which makes soldering larger cables and connectors to it straightforward. Once you have soldered the PDB, we recommend using some hot glue to insulate the contacts.

Please Note – XT90 connectors are sold separately.
