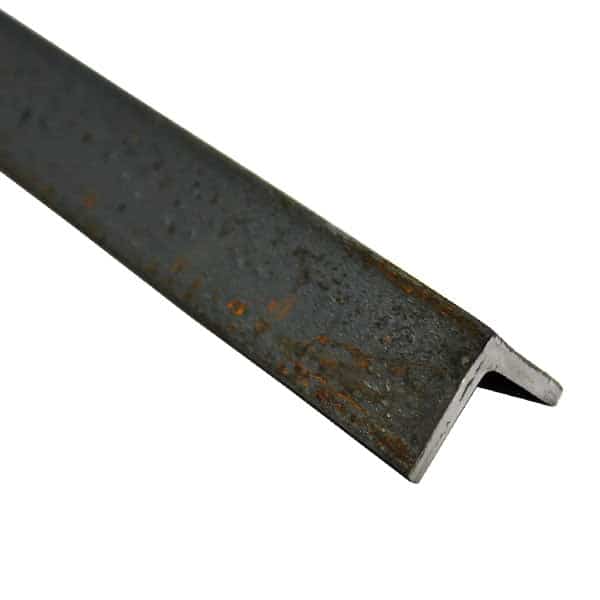

20mm x 20mm x 3mm Mild Steel Angle Steel Bar Section

Equal 20 x 3mm Angle Steel

Our top-quality angle steel is cut, packed and shipped by our terrific team in Warrington, UK within 24 hours. We pride ourselves on our speed for orders of all sizes.

Mild Steel Angle Steel Bar Sections, like the one offered by Speciality Metals in 20mm x 20mm x 3mm and DC01 grade, are incredibly versatile pieces of construction material. The L-shaped design of these angle steels allows them to be used for a wide range of applications, from providing structural support in buildings to being used as edging or fencing.

We also offer this size angle in 304 grade stainless steel. This will give additional resistance to corrosion.

Key product details:

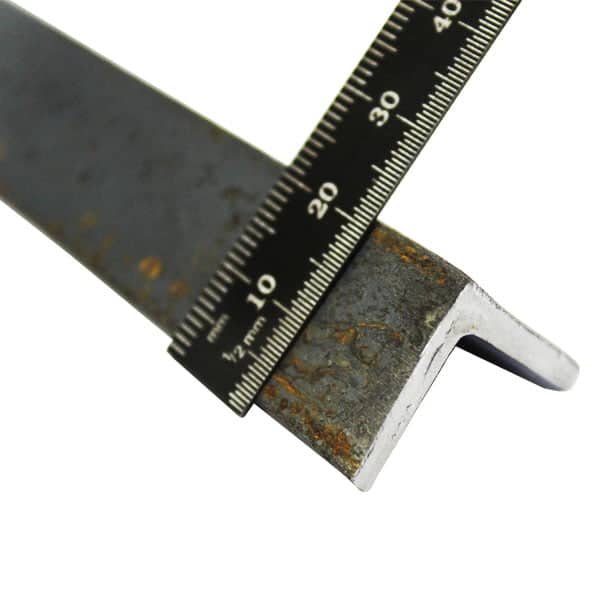

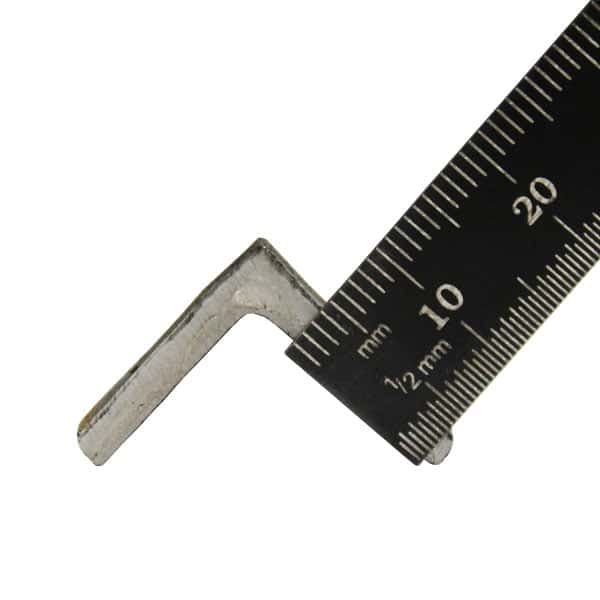

• Angle Steel Dimensions – 20 x 20mm

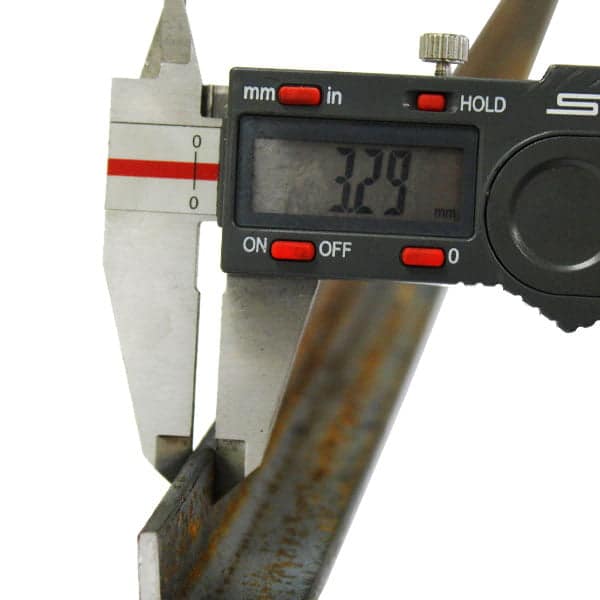

• Thickness – 3mm
• Metal – Mild Steel DC01
• Finish – Hot Rolled

We also carry a wide range of mild steel sheet metal, flat bar and round tube.

Mild steel is our most popular metal option.

Why Choose Speciality Metals

• FREE UK delivery on all orders
• Order dispatch within 24 hours of order
• Located in Warrington, UK which is the UK home of mesh and metals
• Our experienced staff are experts in the mesh market and care personally about your customer experience

Furthermore we stock a vast range of plain sheet plate options that compliment our mesh range perfectly.

Can I Bend Angle Iron?

Yes, you can bend angle iron, but it requires specialized tools and techniques. Angle iron, also known as an angle bar or L-bracket, is a robust and rigid material. To bend it, you will generally need a mechanical force that is greater than what can be applied by hand.

The two most common methods for bending angle iron are using a manual or hydraulic pipe bender or a metal press brake.

Here’s a basic outline of the two methods:

1. Using a Pipe Bender: A pipe bender can be manual or hydraulic. They are typically used to bend tubes and pipes, but can also bend angle iron. The angle iron is placed in the machine, and then the machine is operated to apply force to bend the angle iron to the desired angle.

2. Using a Press Brake: A press brake is a machine tool for bending sheet and plate material, and can also bend angle iron. The angle iron is clamped between a punch and a die, and the machine is operated to press the punch into the angle iron to create the bend.

The success and accuracy of the bend also rely heavily on the thickness of the angle iron, the angle of the bend, and the radius of the bend. It’s essential to keep in mind that bending angle iron can create weak spots in the material, especially if it’s not done correctly.

How Easy Is It To Paint DC01 Mild Steel Angle?

DC01 is a grade of cold-rolled steel, also known as mild steel. It is fairly straightforward to paint, but like any metal, the surface must be properly prepared to ensure good adhesion and prevent rusting. Here are some general steps:

1. Clean the Surface: The first step is to clean the angle thoroughly. Use a cloth and a mild detergent solution or a specially formulated metal cleaner to remove all dirt, grease, and oil. This is crucial because paint will not stick well to a dirty surface.

2. Remove Rust and Scale: If the steel angle is rusty or has scale, you need to remove it before painting. You can use a wire brush, sandpaper, or a chemical rust remover to do this. If using a chemical rust remover, make sure to follow the instructions on the product label.

3. Prime the Surface: Priming is a key step in painting steel. The primer will provide a base for the paint to adhere to and will help prevent rust. Choose a high-quality primer designed for use on metal. Apply the primer with a brush, roller, or spray can, ensuring all surfaces are evenly covered. Allow it to dry completely before applying paint.

4. Paint the Surface: Once the primer is dry, you can paint the steel angle. Use a paint that is designed for use on metal and is suitable for the conditions the metal will be exposed to. Apply the paint in thin, even coats, allowing each coat to dry before applying the next. It’s usually best to apply at least two coats of paint for a durable and attractive finish.

5. Seal the Surface: This step is optional, but for added protection, especially in outdoor applications, you can apply a clear sealant over the painted surface.
