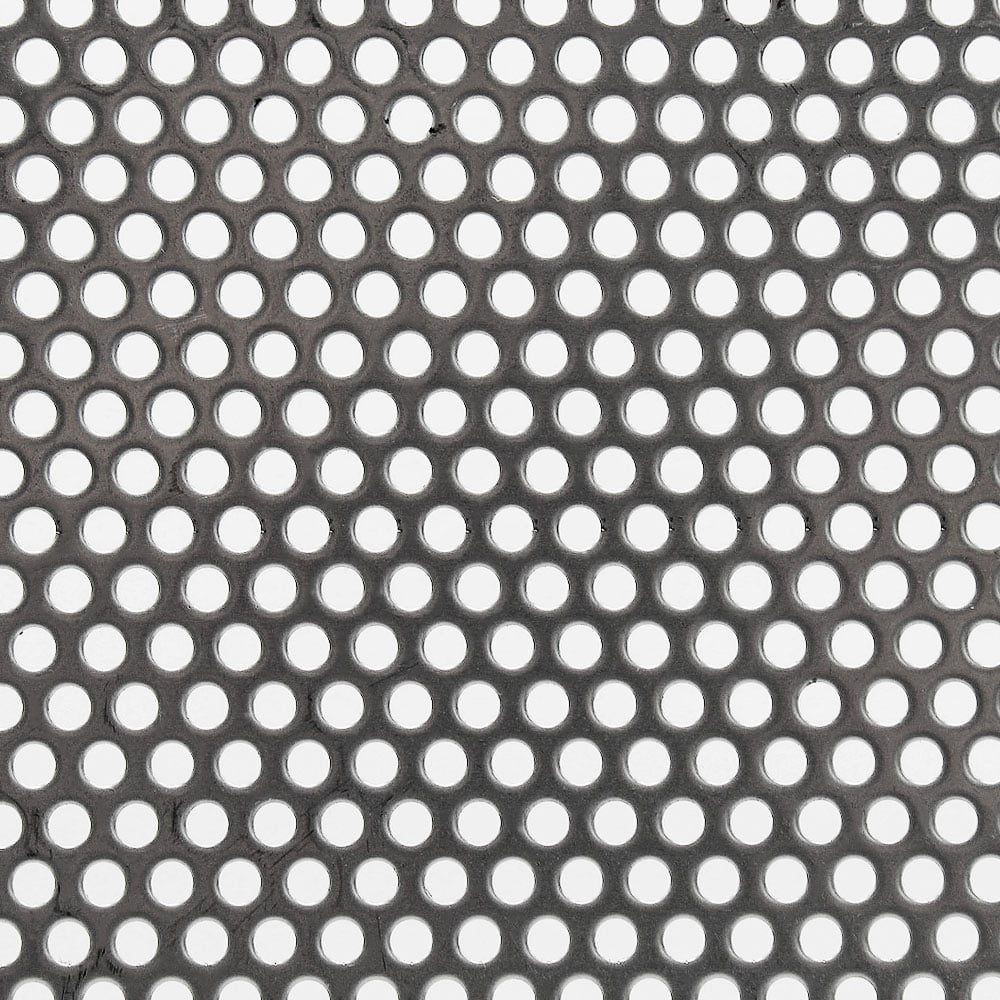

3mm Round Perforated Stainless Steel Mesh Sheets | 5mm Pitch x 1mm Thick

Stainless Steel Mesh Sheets

Top quality stainless steel mesh sheets supplied straight from Warrington, UK.

Speciality Metals offers quality stainless steel mesh sheets that cannot be ignored if you’re searching for these sheets. Their round perforated stainless steel mesh sheets are crafted from 304 grade stainless steel, providing unmatched durability and corrosion resistance. Because this mesh is malleable, it can be used in a range of applications, making it an excellent option for both domestic and commercial applications. Furthermore, these sheets maintain high levels of cleanliness and safety while remaining low maintenance.

Specification

• Aperture – 3mm Square Hole
• Pitch – 5mm
• Web – 2mm
• Sheet Thickness – 1mm
• Metal – Stainless Steel 304 Grade
• Open Area – 28.27%

Speciality Metals are the best suppliers for you because:

• FREE UK delivery on all orders
• Order dispatch within 24 hours of order
• Located in Warrington, UK which is the UK home of mesh and metals
• Our experienced staff are experts in the mesh market and care personally about your customer experience

Speciality Metals is a trusted UK based distributor of fasteners, sheet metal, flat bar and round tube. We specialise in rapid delivery to any location around the country. Our team of experienced, friendly staff are at hand at all times to process your order.



---

FAQs About This Product

Can Stainless Steel 304 Perforated Mesh be Anodized?

Anodizing is generally a process applied to aluminum to enhance its corrosion resistance, improve its aesthetic qualities and provide a better surface for painting and other coatings. It is not typically applied to stainless steel, including 304-grade stainless steel, for a couple of reasons:

1. Material Composition: The anodizing process relies on the material having a high aluminum content, which is not the case with stainless steel.

2. Inherent Corrosion Resistance: One of the primary reasons to anodize metals is to improve corrosion resistance. Stainless steel, especially 304-grade, already has high natural resistance to corrosion due to its chromium content.

3. Surface Treatments: For stainless steel, there are other more suitable surface treatments like passivation, electropolishing or applying specialised coatings to achieve the desired characteristics.

How Do I Calculate the Weight of Perforated Mesh?

Calculating the weight of perforated mesh involves taking into account the material’s density, sheet dimensions and the open area percentage. Here’s a general guide for how to calculate it:

Step 1: Calculate the Area of the Sheet

Calculate the area of the entire sheet or piece of mesh in square meters (m²) or square feet (ft²), depending on your units of measurement.

$\text{Total Area of Sheet}=\text{Length}\times \text{Width}$

Step 2: Calculate the Effective Material Area

Subtract the area lost due to perforations. This is typically given by the formula: $\text{Effective Material Area}=\text{Total Area of Sheet}\times (1-\text{Open Area \%}/100)$

Step 3: Calculate the Volume of Material

Multiply the effective material area by the thickness of the sheet to get the volume of the material. $\text{Volume}=\text{Effective Material Area}\times \text{Thickness}$

Step 4: Calculate the Weight

Multiply the volume by the density of the material to find the weight. The density of stainless steel is approximately 8,000 kg/m³ or 0.289 lb/in³.

For metric units: $\text{Weight (kg)}=\text{Volume (m³)}\times \text{Density (kg/m³)}$

For imperial units: $\text{Weight (lb)}=\text{Volume (in³)}\times \text{Density (lb/in³)}$

This will give you the approximate weight of the perforated sheet, assuming uniform thickness and hole distribution. For more precise calculations, it’s advisable to consult directly with the manufacturer or an engineer, especially for complex or custom perforations.

How Can Stainless Steel 304 Perforated Sheets be Stacked?

Cleanliness:

• Ensure that both the surface where the sheets will be stacked and the sheets themselves are clean to prevent scratching and contamination.

Orientation:

• Sheets should be laid flat and stacked uniformly. Make sure the sheets are aligned to prevent the corners or edges from digging into the sheets below.

Spacers:

• Use soft material spacers like rubber, foam or wood between the sheets to prevent them from scratching against each other. This is particularly important if the sheets have a polished or specialised finish.

Edge Protection:

• If the edges of the perforated sheets are sharp, consider using edge protectors to prevent injury.

Weight Consideration:

• Do not stack more sheets than the supporting surface or structure can safely hold. Consult with engineers or professionals if you’re unsure about the weight limitations.

Stability:

• Make sure the stack is stable to prevent tipping. Sheets should be stacked squarely and not at an angle to maintain stability.

Height Limitations:

• Keep the stack height within manageable and safe limits. Too high a stack can be unstable and dangerous.

Climate and Environment:

• If the sheets will be stored for a prolonged period, consider the storage environment. Stainless steel is corrosion-resistant, but a damp or aggressive environment could still cause issues over time.

Labeling:

• Clearly label the stacks, especially if you have different grades, thicknesses or hole sizes to prevent confusion.

Handling Equipment:

• Use appropriate lifting and handling equipment like forklifts or hoists fitted with non-abrasive slings to move the sheets. Always adhere to safety guidelines when moving heavy materials.



---



Check out our blog discussing What is Perforated Mesh. It will prove a useful read to help you to make an informed decision on which material would work best for you.

We are also very proud of our ever expanding YouTube channel.

Our goal for our blogs, videos and help guides is to answer as many questions as possible to help to explain the possibilities of mesh to our customers.  Contact us today if you have any questions at all. We are always really keen to help in any way that we can.
