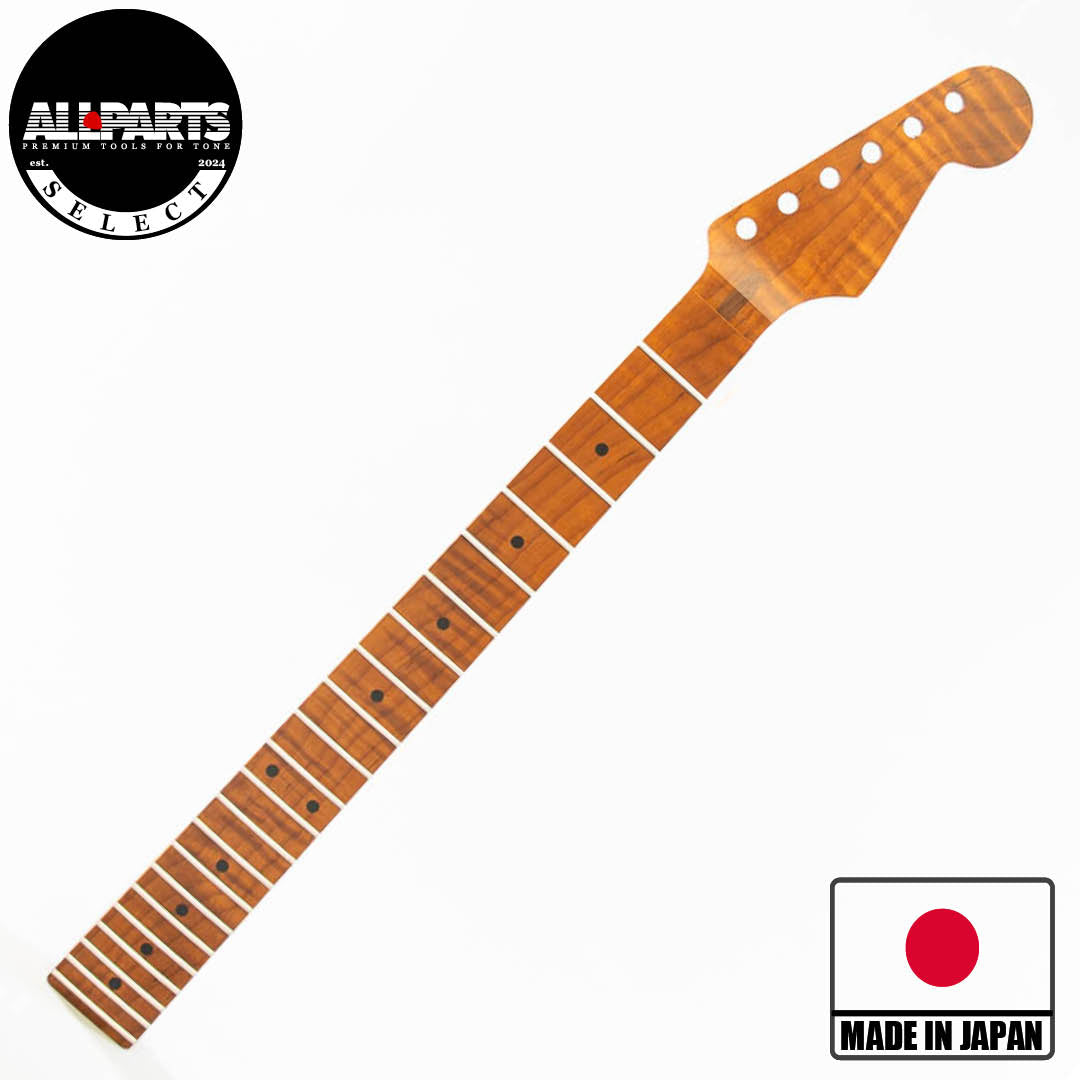

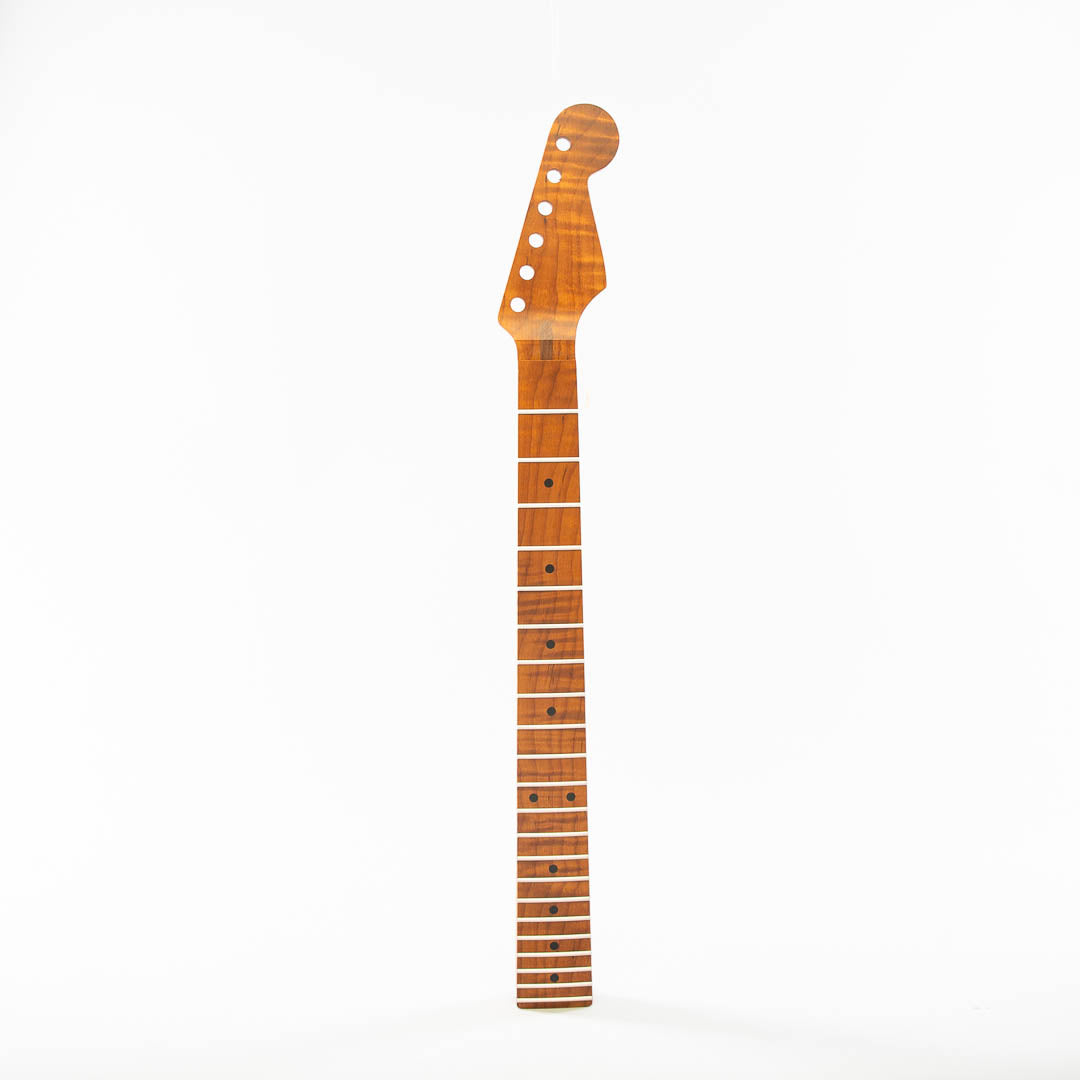

Allparts Select Tribute Series “1984” Replacement Strat Neck AAA+ Roasted Flame Maple – Licensed by Fender

Allparts Select Tribute Series

Allparts “Select” guitar and bass necks represent the very best we have to offer in terms of quality, player-centric features, wood grades, and high-end appointments.  Our Select “Tribute” models pay homage to legendary artists by pairing their preferred specs with upgraded roasted maple options for a truly unique playing experience.  Produced in extremely limited batches and individually graded and inspected, Allparts Select Tribute necks are inspired by legends and available to you!

Model Overview

Regarded as one of the most innovative and influential musicians of the 20th century, EVH was known for fast and fluid guitar solos, impeccable tone and dazzling technique. Constantly modifying his guitar for ever greater levels of performance, Eddie experimented with various necks, pickups, wiring configurations, and bridges, and ultimately ushered in the era of “Superstrats.”  Our “1984” neck pays homage to his remarkable contribution to guitar playing and design by combining many of the specs he popularized into one highly playable, high-performance replacement neck.

What’s AAA+?

Every unit with this designation is at least AAA grade flame maple, with many units actually exceeding the standard.  We inspect each unit post-production to make certain the finished product is worthy of our AAA guarantee.

Why Roasted?

Roasting the wood enhances stability by reducing the moisture content down to around 7%.  The result is a more-resonant neck that’s stronger and less susceptible to changing weather conditions.

Features

• Custom thin asymmetrical neck profile offers players a more ergonomic feel, allowing for better comfort with less fatiguing.
• Thin poly satin finish for hours of frictionless playing.
• Compound 12”-16” fretboard radius offers a more comfortable feel when chording on the lower notes and a flatter 16” radius in the higher registers for fast, aggressive soloing and wild bends
• Cut for an R2 locking nut to be used with a Floyd Rose® or other locking trems
• Squared fretboard overhang mimics Eddie’s original aesthetic while the heel of the neck is rounded to fit most Strat® neck pockets

Specifications

• Scale Length: 25.5″
• Neck Profile Shape: Custom asymmetrical thin-C
• Frets: 22 Jumbo (0.114″ x 0.055″)
• Wood: 1-piece roasted AAA+ flame maple
• Finish: Thin polyurethane
• Fretboard Radius: Compound 12”-16”
• Inlays: Black fretboard and side marker dots
• Nut Width: 1-5/8” (locking nut shelf for R2 nut)
• Heel Width: 2-3/16″
• Heel Shape: Round w/ squared fretboard overhang
• Tuning Peg Holes: Modern 10mm
• Truss Rod Adjustment Location: Heel
• Neck Thickness:
  • 0.79″ at first fret
  • 0.81″ at twelfth fret

Important Notes

• Statements relating to artists are intended only for reference and do not imply endorsement, association or use of this product.
• Wood grain varies from neck to neck.  Your neck may differ slightly from what is pictured.
• All necks have a limited lifetime warranty against defects in materials and workmanship.
• All necks may require fret leveling and polish.  This is normal and not a defect.
• To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
• Due to the lack of moisture in roasted maple, the risk for cracking is more apparent.  When drilling holes for screws, we recommend measuring inside and outside of the threads first to determine the correct drill bit to use.  Do not force screws into holes drilled with smaller drill bits.
