Drone PWM Electronic Payload Release / Thrower

Important Customer Notice: This product is exclusively available for purchase by businesses and educational institutions. We’re unable to fulfill orders from individual buyers — thank you for your understanding.

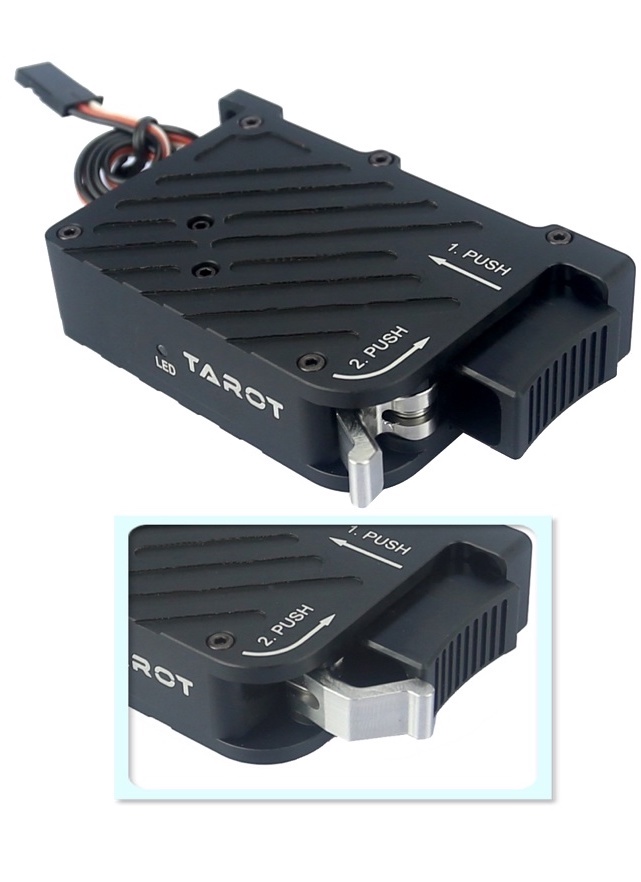

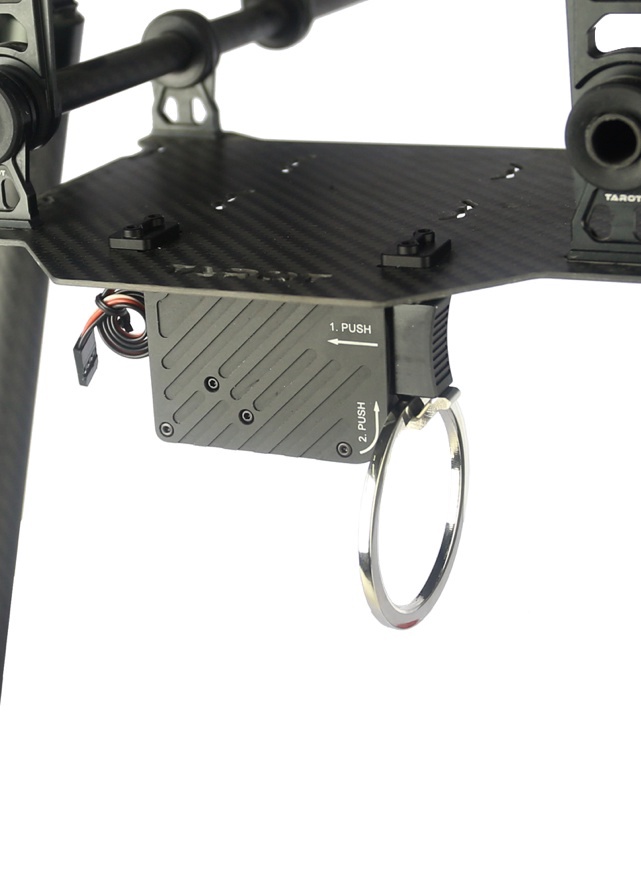

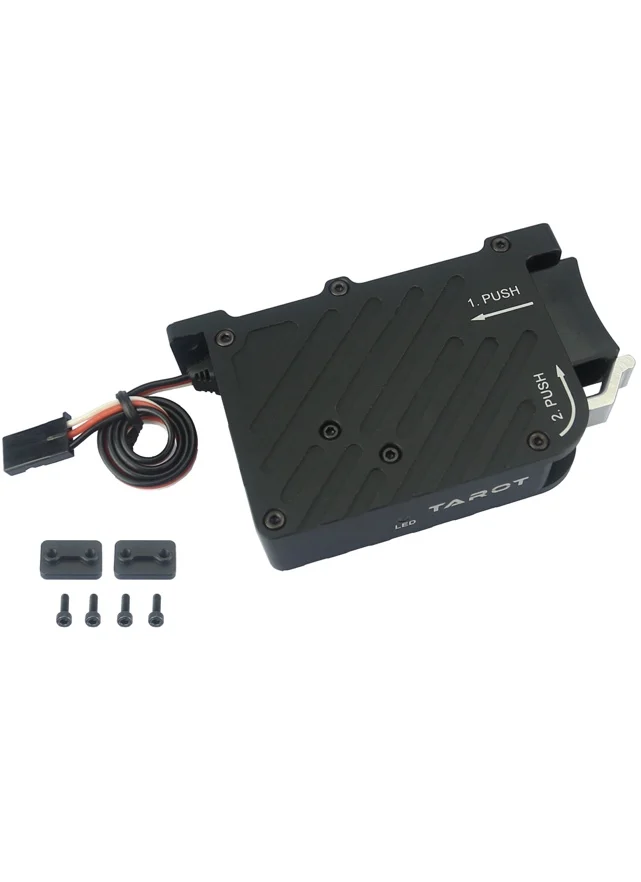

An effective electronic payload release mechanism from Tarot. Its recommend use is for up to 20KG loads, but Tarot have tested it for 40KG and found it to be effective. The thrower device is controlled via a PWM signal. After operating, the device is simply reset by pushing the side button and lifting the release level.

Multiple units could be operated at the same time if connected to the same PWM output via Y leads. Alternatively units could be independently operated by being connected to different PWM channels.

Notes on LED indicator:
1: PWM signal input value 0-59%: The red LED is always on/no device action.
2: PWM signal input value reaches 60-100%: The LED green light flashes once / the device drop switch is turned on once; the LED light stays on green after the drop is over.
3: LED red light flashes (2 times/second) when no PWM signal input is detected by the device.
