Emerson Custom Telecaster 4-Way Prewired Kit

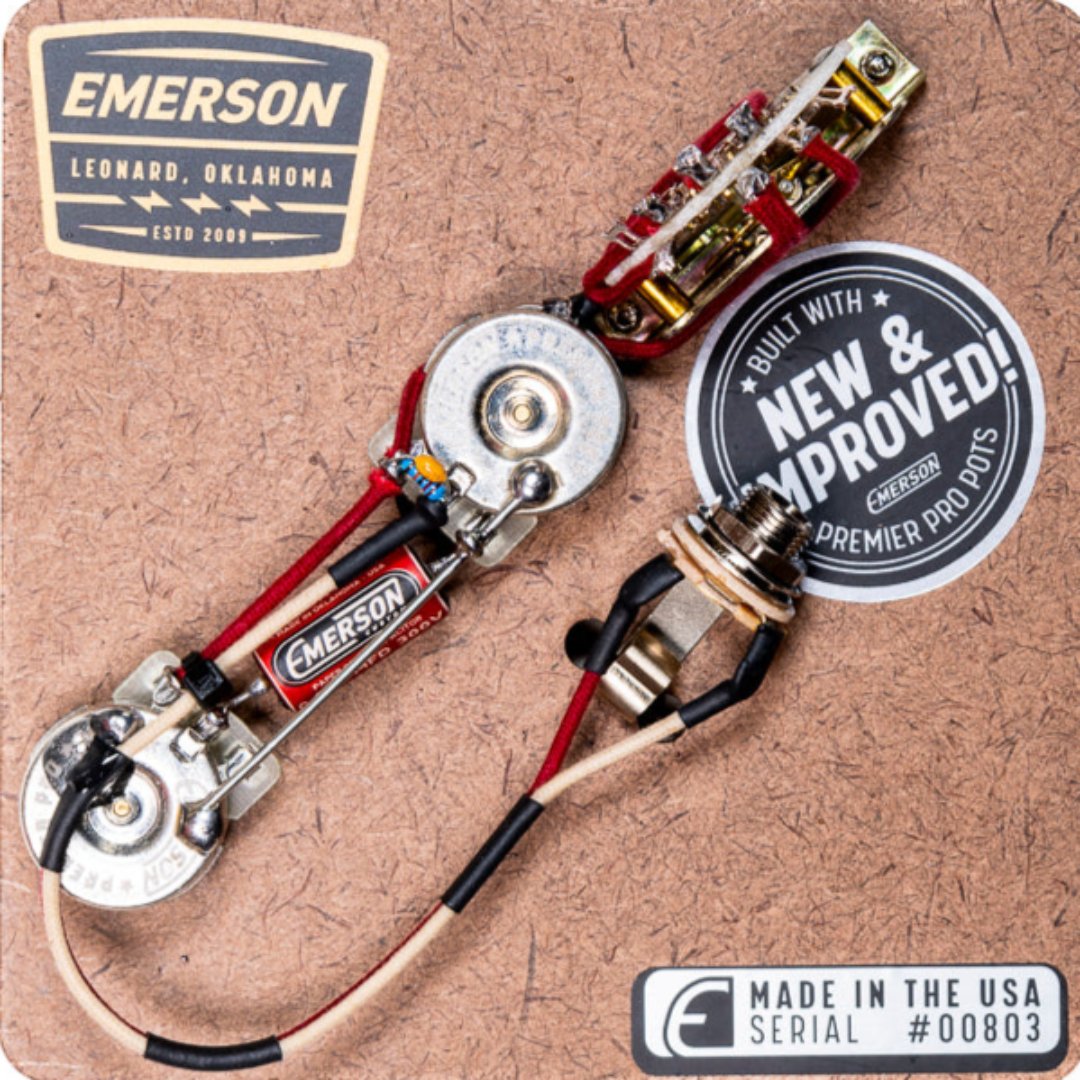

This is a 4-Way Tele prewired assembly (MFG# T4-250K-PREMIER) for Telecaster® style guitars featuring 2 single coil pickups. It will drop into most American Fender® Teles with no modification. Wired with 22 AWG vintage push-back wire for that vintage look and sound. Soldered connections to the input jack are insulated with heat-shrink to ensure durability and long life. If you are installing this on an import guitar with metric sized pots, you may need to ream your control plate holes to accept the slightly larger US-Spec pots and buy US-Spec knobs.

Switch Positions

1. Bridge
2. Bridge & Neck in Parallel
3. Neck
4. Bridge & Neck in Series (Humbucker Type Fullness)

Includes

• (2) 250k Emerson PREMIER PRO Solid Shaft Potentiometers 0.375″ (3/8) Shaft length
• (1) Oak Grigsby 4-Way Switch
• (1) Switchcraft 1/4″ Mono Input Jack
• (1) 0.047uf Emerson Paper in Oil Capacitor
• (1) Volume Mod
• Wiring Diagram

Additional Information

BUILT & SPACED FOR USE ON STANDARD FENDER® STYLE TELE® CONTROL PLATES. CENTER TO CENTER OF VOLUME AND TONE POTS IS 2.50 INCHES.

**If you plan on using Humbuckers with this setup, you MUST use Pickups with 4-Conductor wire… 2-Conductor Humbuckers will NOT work properly with the 4-Way setup.**
