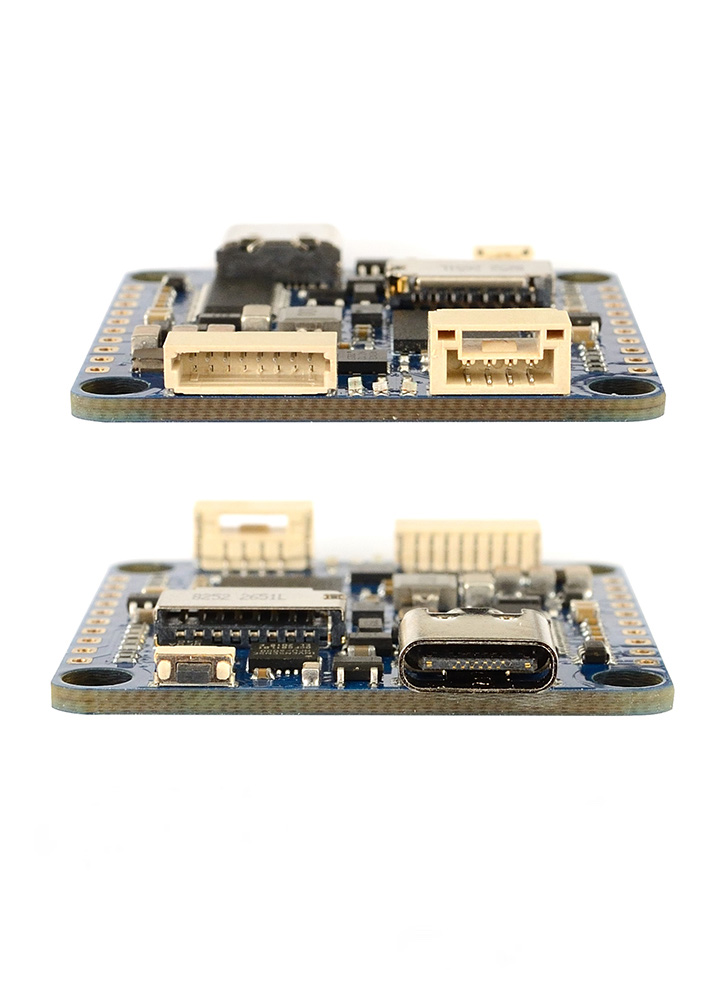

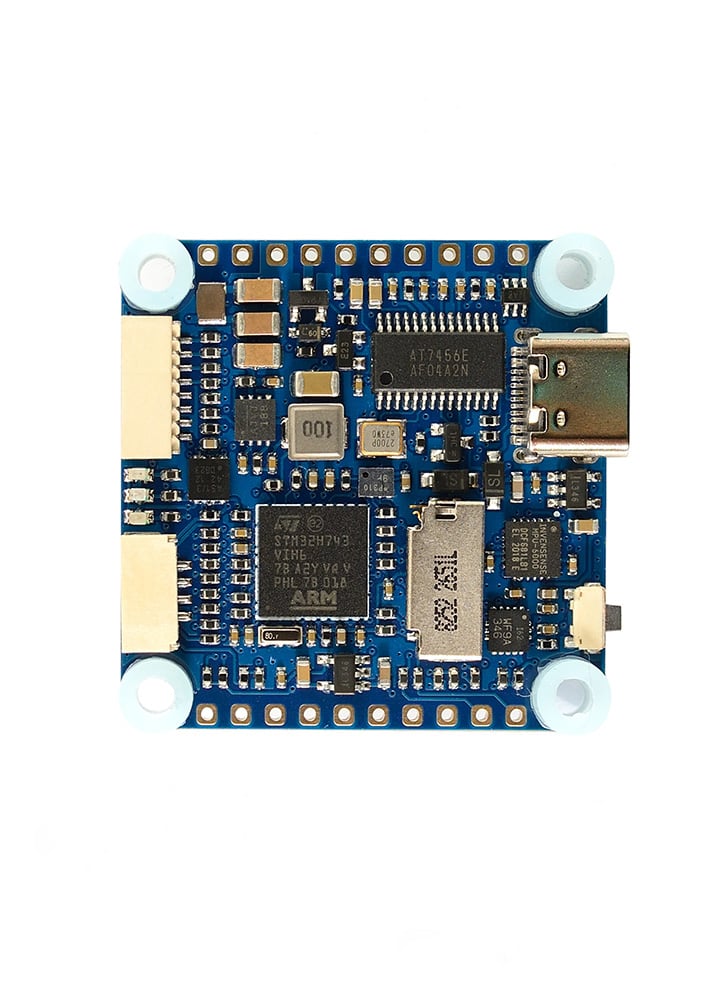

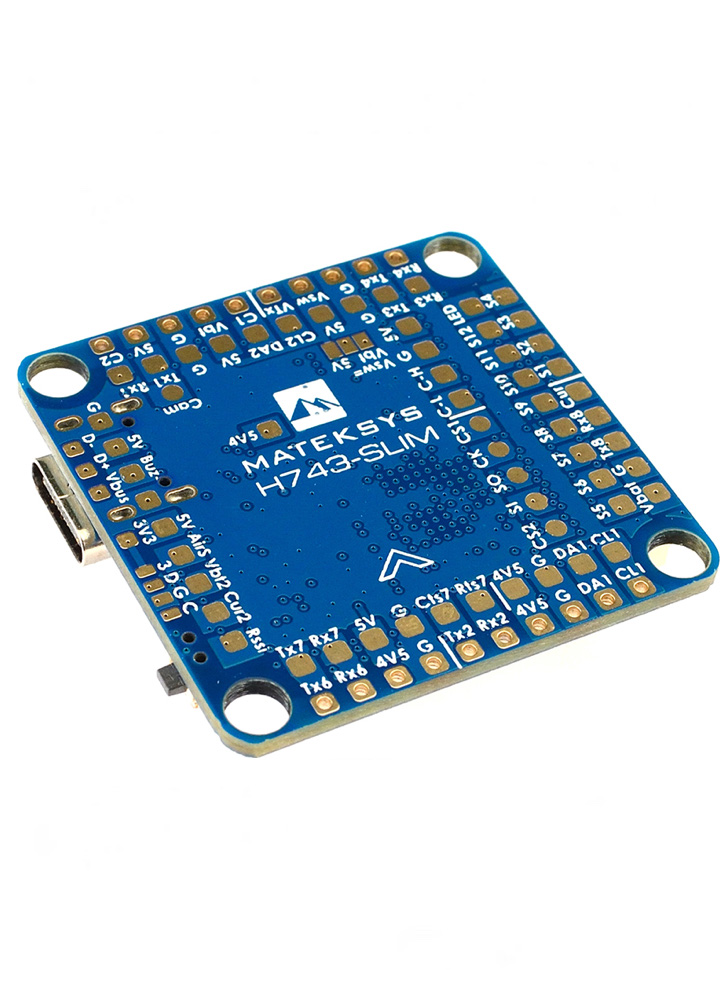

Matek H743 Slim V3 30×30 Flight Controller

FLIGHT CONTROLLER H743-SLIM V3

STM32H743VIT6, ICM42605 & ICM42688P, DPS310, OSD, 7x UARTs, 2x I2C, 1x CAN, 13x PWM outputs, BEC5V

Loaded with an array of features and tons of room for peripherals, this board lets you choose how you want to fly. It’s compatible with INAV, Betaflight, and ArduPilot. New features in the H743-SLIM include switchable dual camera inputs and a max voltage of 36V(8S).  Alongside its ultra fast H7 480MHz processor, the specification includes dual gyros (IMU ICM42688P, ICM42605), an Infineon DPS310 barometer, built in AT7456E OSD (On Screen Display), 13 PWM outputs, 7x UARTs, 2x I2C, 1x CAN, a 5V UBEC, switchable camera inputs and finally a MicroSD card slot for blackbox logging.

Current version is V3.

Versions:

• V1, IMU MPU6000, ICM20602
• V1.5, IMU MPU6000, ICM42605
• V3,  IMU ICM42688P, ICM42605
