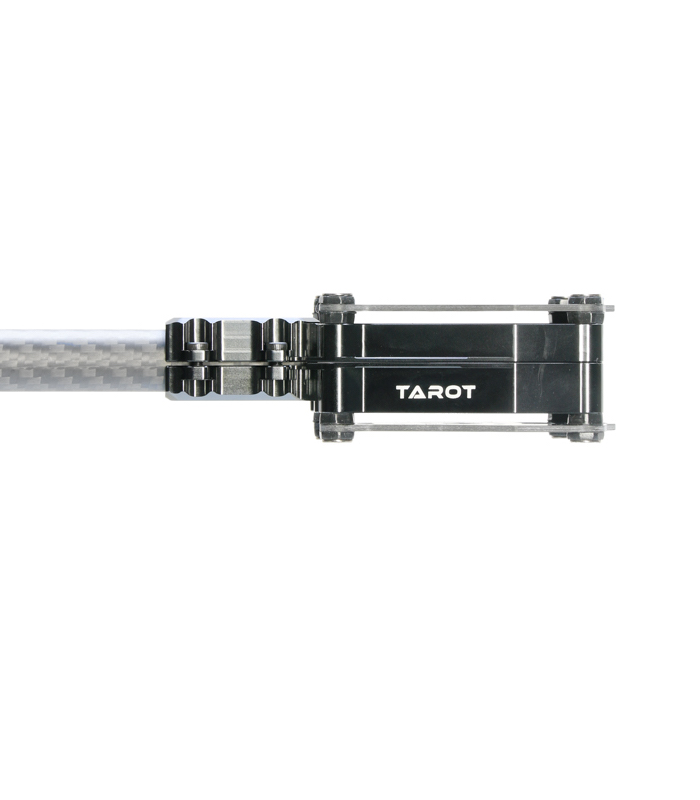

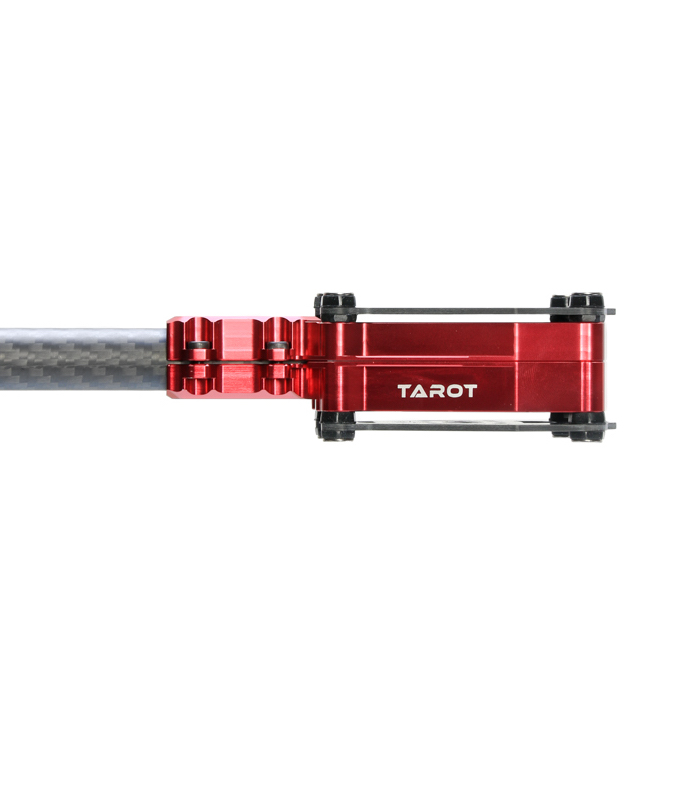

Tarot 16mm Anti-vibration Coaxial Motor Mount

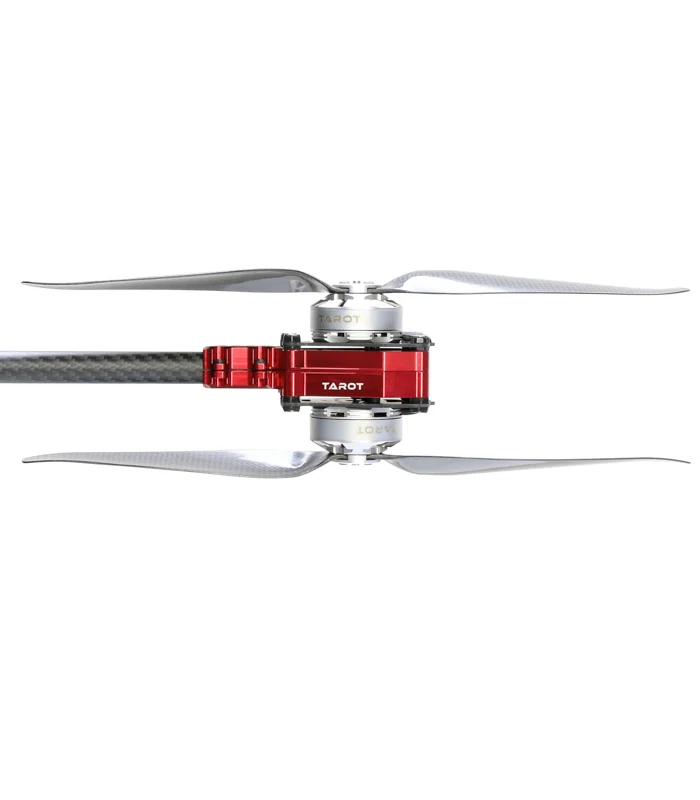

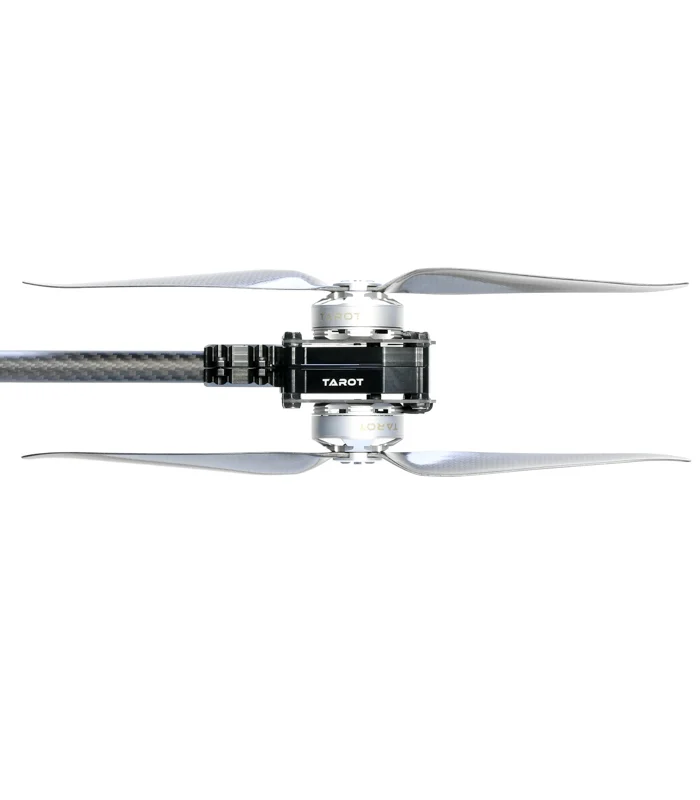

As motor mounts go, this one is pretty neat. It has dual motor mounting positions and vibration damping technology built in. Thanks to its dual motor mounts, you can use it to build an awesome coaxial multirotor. Coaxial setups have many benefits other traditional radial configurations, for instance they have greater lifting power, higher redundancy and more stability. For those reasons alone, you’ll find that a lot of professionals choose to use coaxial multirotors.

This particular mount is compatible with any Φ16mm tube and its clamping design makes it easy to attach and position level. Furthermore the mount has been designed so that it can contain the ESCs, making for a very neat installation. Finally, the mount features anti-vibration silicon dampers, which help minimise high frequency vibration transfer to the mainframe; helping to reduce jello effect in your videos and improve flight controller performance.

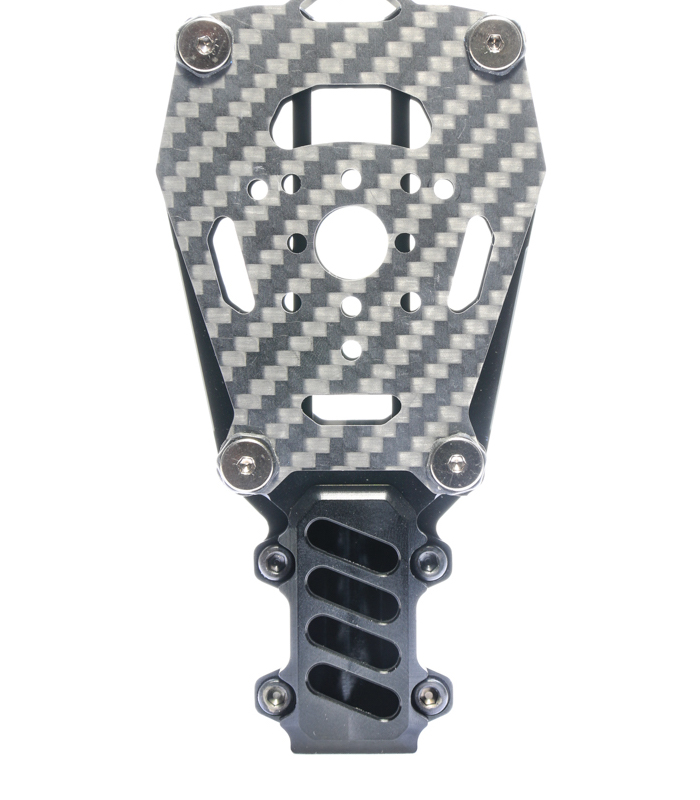

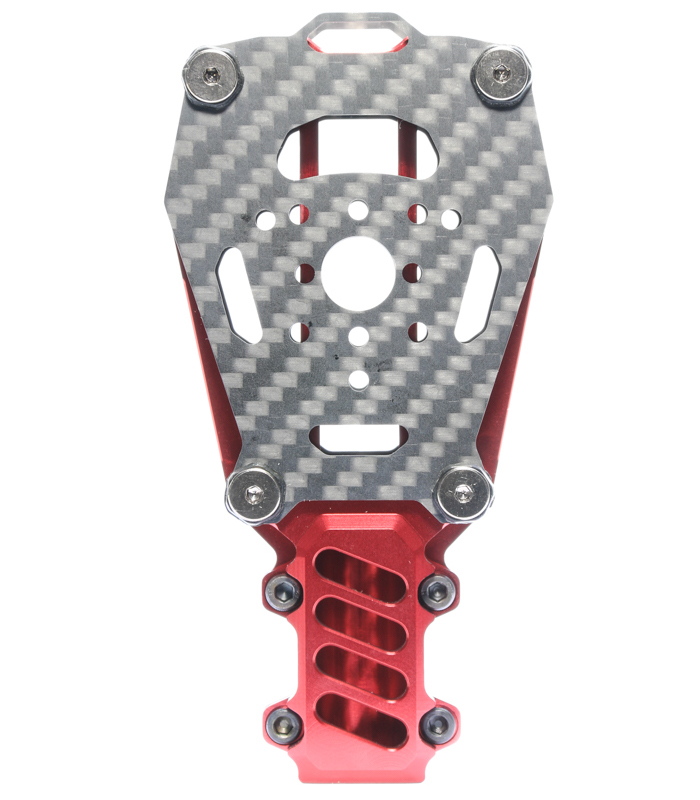

The mount is CNC machined out of lightweight 6061 aluminium and strong 3K carbon fibre. The carbon fibre plate has mounting holes configured triangularly, spaced 16mm, 19mm, 25mm and 27mm apart to suit most motors. The mount is available in two colour options, red and black. Opting for a combination of both can be used help you to distinguish the orientation of your multirotor in flight.

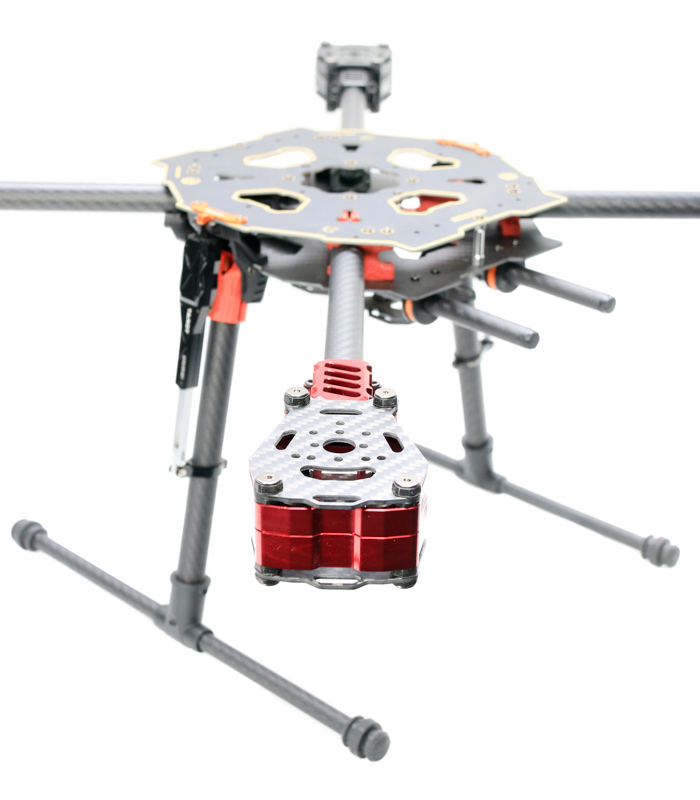

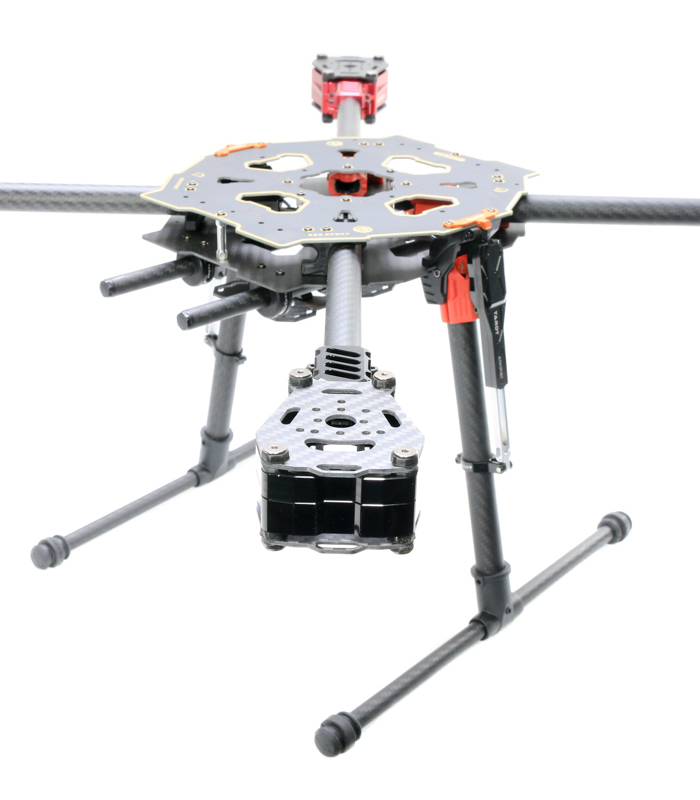

The Tarot 650 Sport uses 16mm tubes, so this mount could be used to upgrade it from a quadcopter to a professional spec X8 octocopter.
