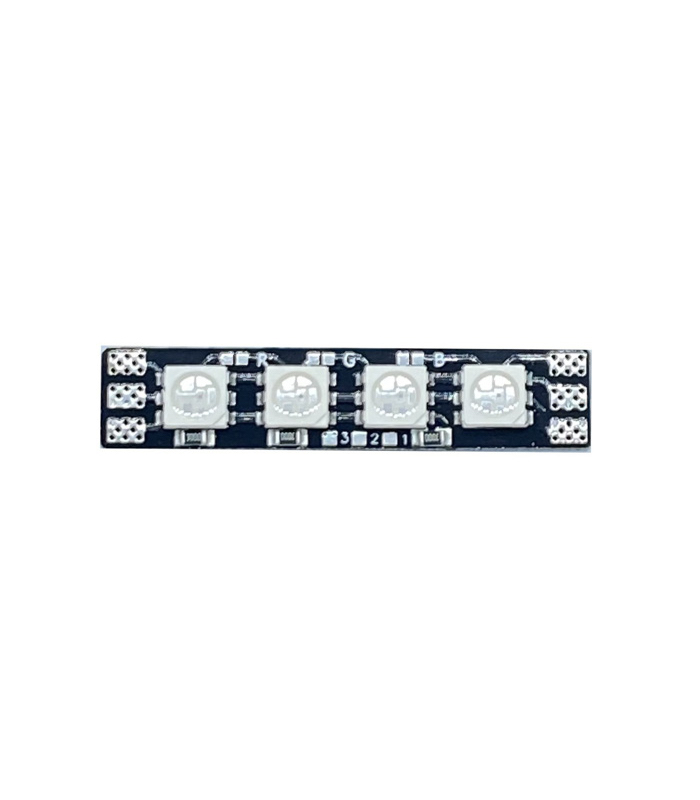

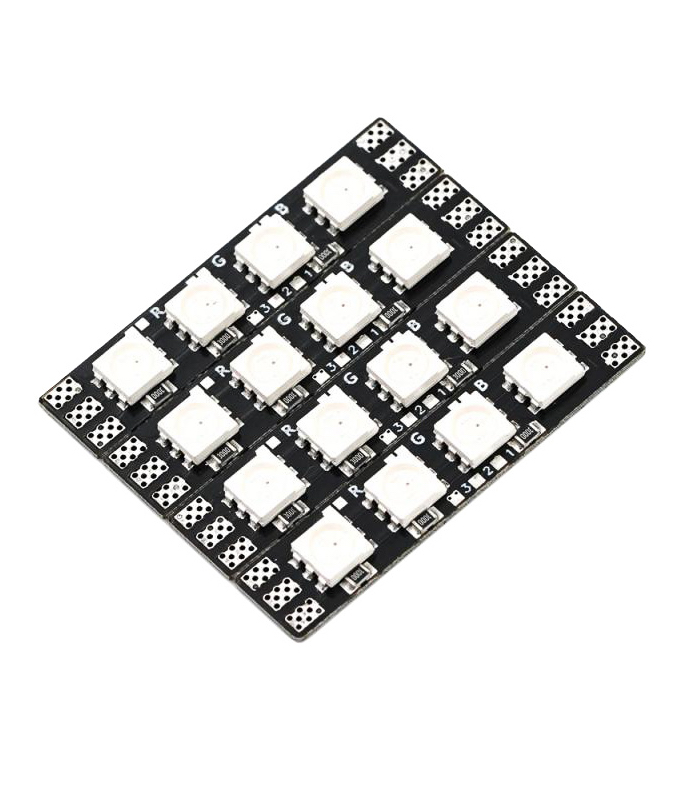

TINY LEDs RGB RaceLiteWire LEDs Full Size (4pcs)

Tiny’s RaceLiteWires are Racewires with the addition of configurable 5050 size RGB LEDs that get brighter the faster you go!

Also available in Mini size (25mm)!

5050 RGB LEDS INTEGRATED INTO RACEWIRE.

• Racelites brightness changes with throttle input. These are not constant on full brightness, they illuminate only when motors are spinning.
• Can be installed in any direction.
• There are pads to allow you to wire up additional Racelites to the bottom of your Arms. Use the pads labeled “1,2,3” and wire them to the same pads on the under arm LED.

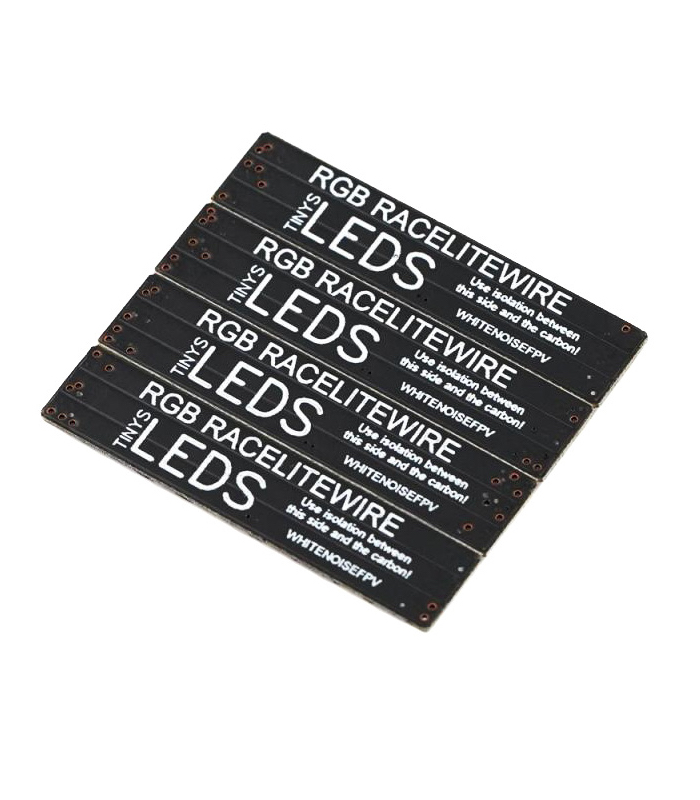

• You must insulate the bottom of the boards.

COLOR BREAKOUT:

The colour is determined by the combination of colour pads bridged​

• Not Soldered =  –
• Soldered =  |

BLUE / RED / GREEN:

• Yellow   – | |
• White     | | |
• Cyan.    | – |
• Green    – – |
• Blue     | – –
• Red.      – | –
• Pink/Purple  | | –
