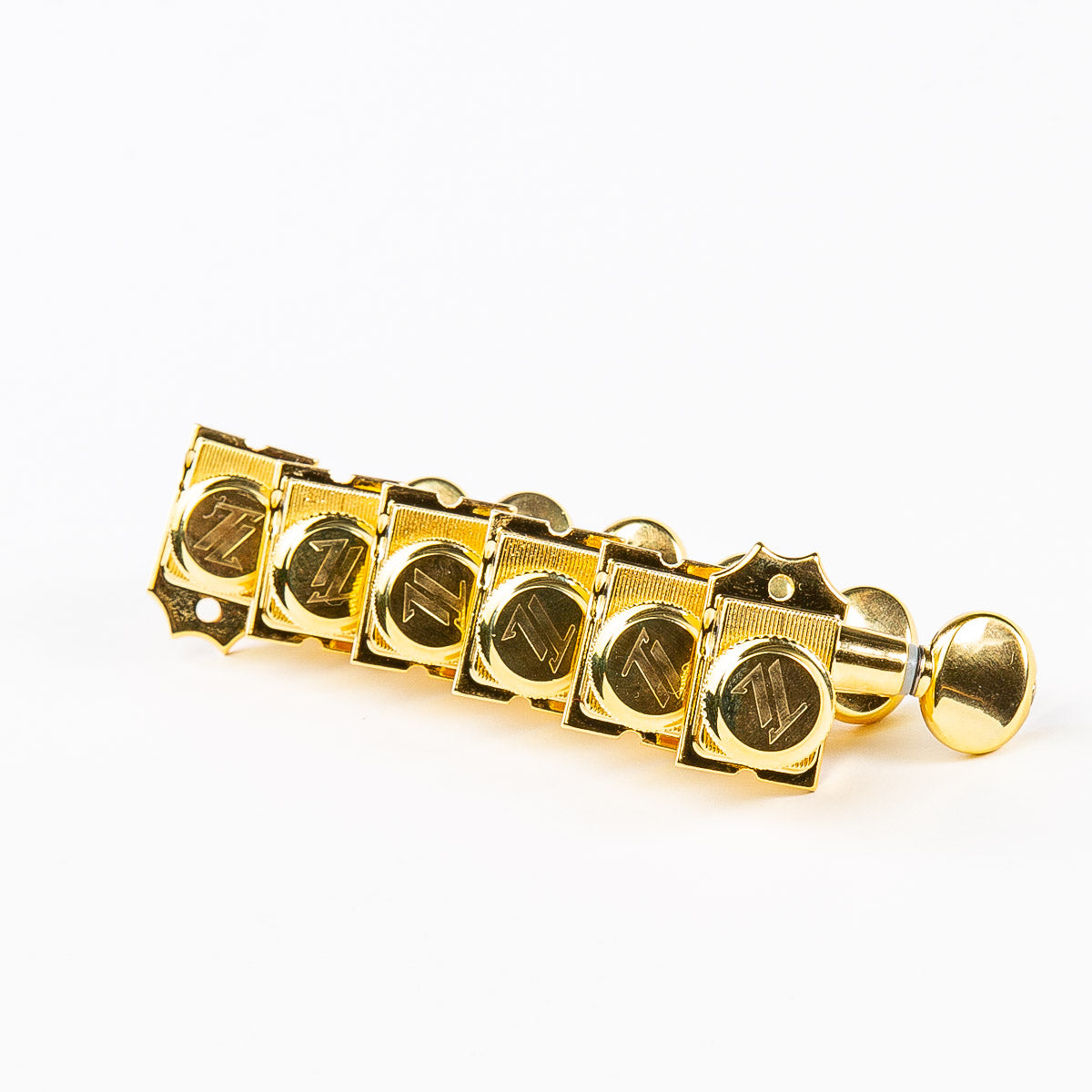

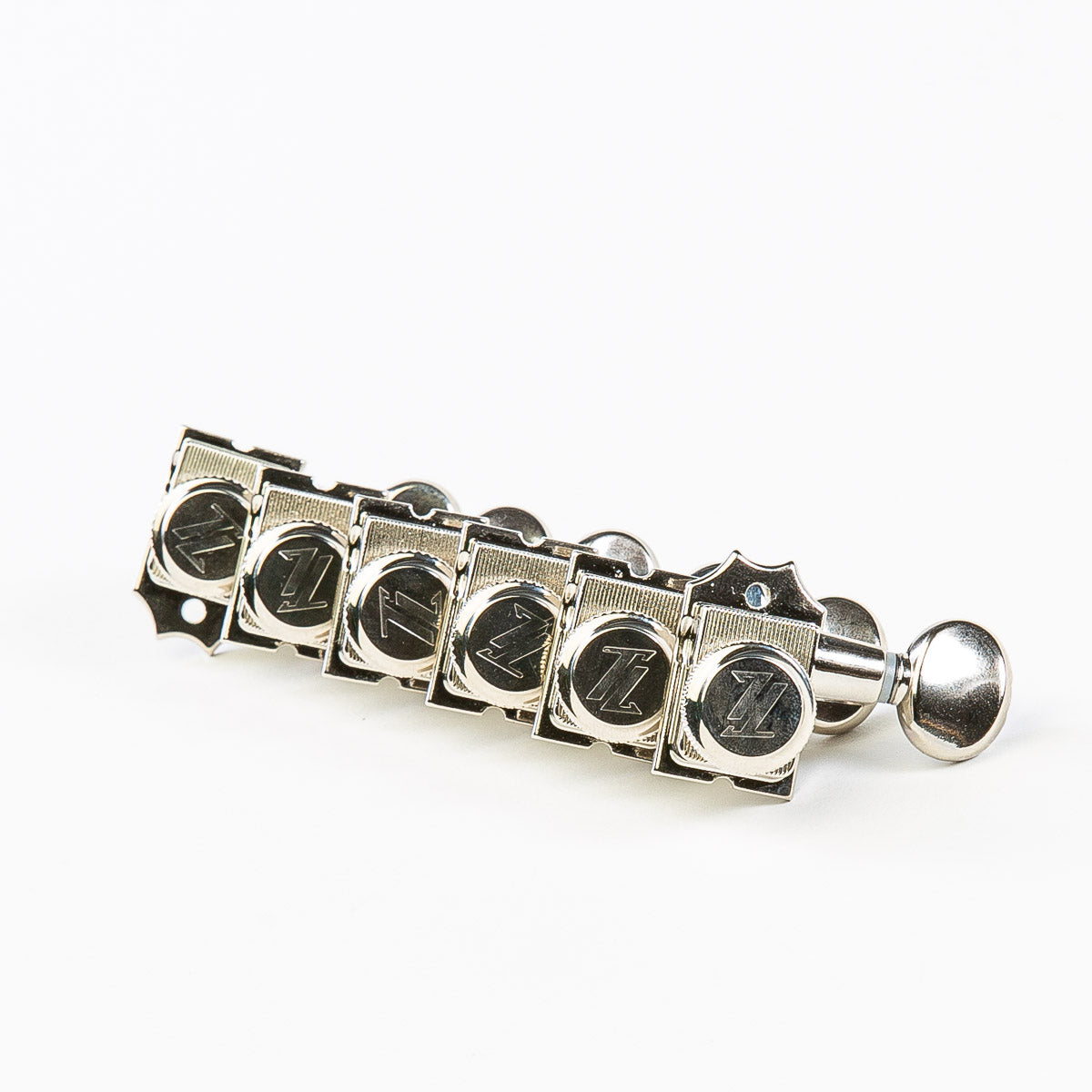

True Lok – Vin Mod 6IL Staggered Post – Oval Button

True Lok

True Lok series tuning keys were designed to deliver impeccable tuning stability.  With options available for most vintage and modern guitars, every player can upgrade their instrument for Lok-solid performance

VIN MOD

Combining vintage aesthetics with modern manufacturing techniques, our True Lok Vin-Mod series tuning keys offer fans of vintage guitars ultimate tuning stability while maintaining a classic, traditional appearance inspired by tuning keys used on vintage guitars. Combined with its string locking mechanism and 18:1 gear ratio, a tension washer is installed between the string post and base plate to eliminate “post wiggle,” making these keys accurate and ultra stable.  Players will notice the silky-smooth feel employed by internal nylon washers that cushion the key’s gear shaft.  Lastly, string changes are made easy by simply pulling the string through the tuner post and locking it in place before tuning to pitch.  True Lok Vin-Mod keys are the perfect solution for those wanting to preserve the classic look of vintage instruments with the accuracy and stability of a modern locking tuning key!

Features and Specifications

• Locking key with lock wheel on back of housing
• Orientation: 6 In-line w/ staggered height posts
• Gear Ratio: 18:1
• String Post: Brass
• Worm Gear: Steel
• Gear: Brass
• Key Housing: High density die-cast zinc
• Button Style: Metal oval
• Tension washer added to the base of string post prevents “post wiggle” for better sustain and more stable tuning
• Nylon washer added to worm gear post for smoother feel
• Staggered posts eliminate the need for a string tree
• Casted vintage housing offers a classic look while encasing internal components better than older keys made of stamped steel, making them less susceptible to corrosion and adding to the key’s overall longevity
• Follows same screw pattern as most 2-screw mount vintage style keys
• Requires 10mm post hole
• Hardware Included: 6 screw-in bushings, 6 dress washers, 7screws
