UNITY™ Tactical AXON™ SL Switch

UNITY™ Tactical AXON™ SL Switch

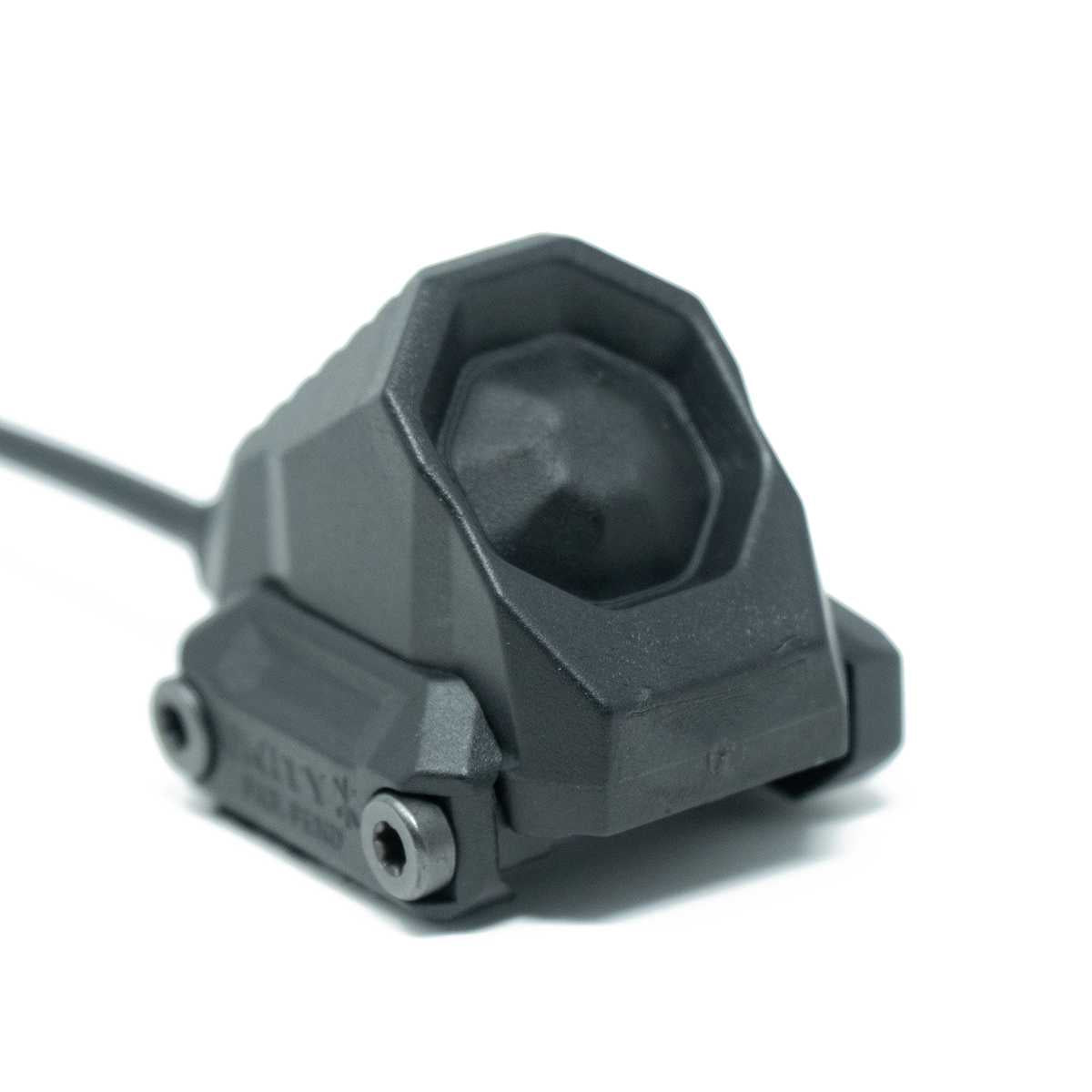

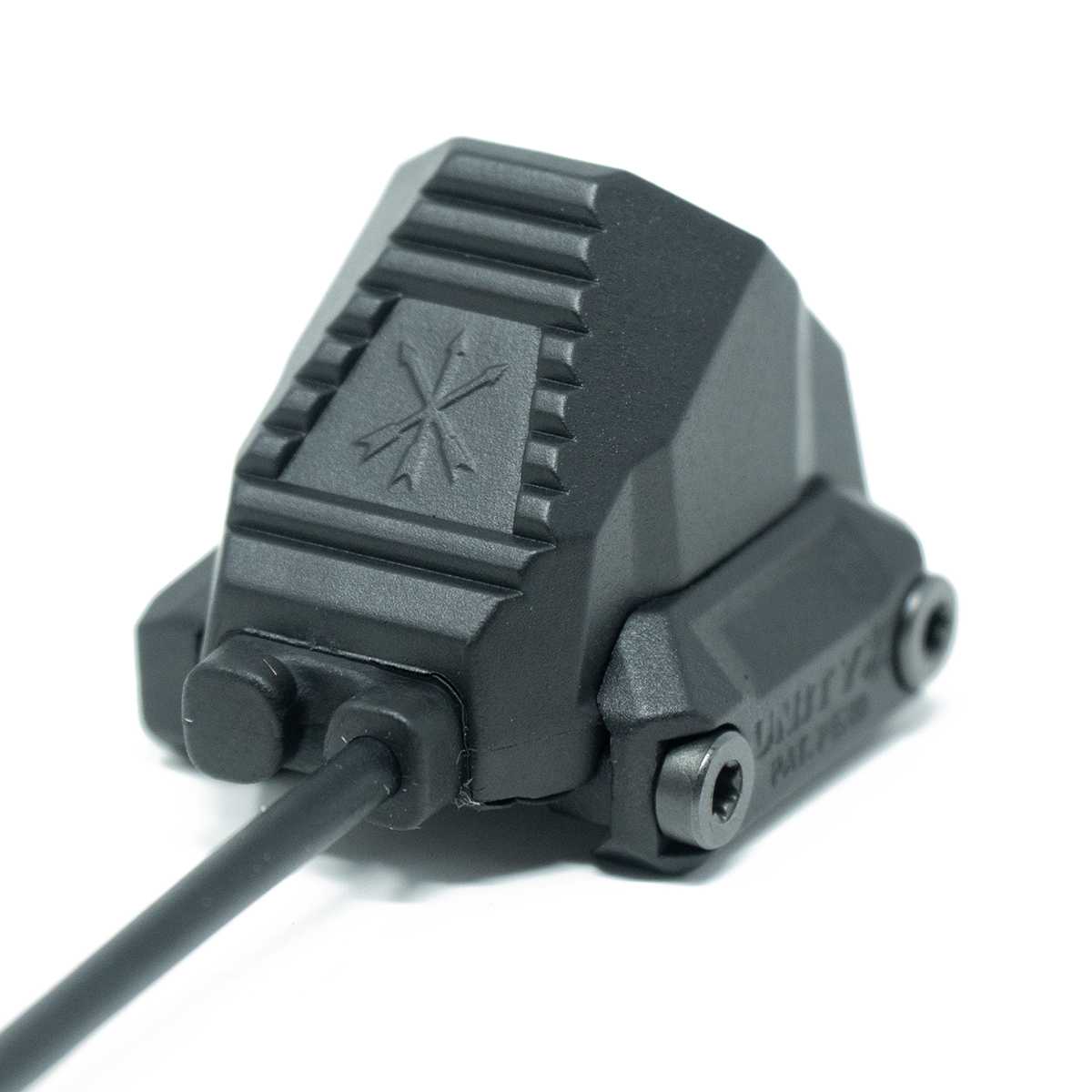

UNITY™ Tactical’s AXON™ SL is the smaller, single-button switch in the AXON™ family. It hard mounts directly to an M1913 Rail. AXON™ SL features a 45-degree angled button face for an ergonomically correct activation angle, making it easy to index under stress while wearing PPE or facing extreme environmental conditions.

Molded from high-impact polymer, AXON™ SL holds up to abuse in the field. The mechanical switch design utilizes a momentary-only switch to facilitate use with the native double-click-for-constant-on feature found in most common aiming devices on the market.

GBRS Group is the exclusive retailer of AXON™ SL models with extended-length cables, which complements use with our Hydra mount. GBRS offers AXON™ SL models with 10” Crane cables, 14” Crane cables, or 14” NGAL cables.

SPECIFICATIONS:

• Rail Mount: MIL-STD M1913
• Dimensions: 1.16″W x 1.56″L x 0.96″H (2.95 x 3.96 x 2.44 cm)
• Weight: 1.0 oz (28.3g)
• Material: High-Impact Polymer
• Cable Length: 10” Crane Cable, 14” Crane Cable, or 14” NGAL Cable (Mode Select)
• Recommended Torque: 5 In./Lbs (0.57 Nm)

*NOTE: Over-torquing fasteners can damage your mount and/or your optic and will void your warranty. Using thread locking compounds, such as Loctite® or others, is not recommended and will void your warranty.

COMPATIBILITY:

• NATO Crane-Spec Port
• NGAL (LA-23/PEQ)

WARRANTY:

• One-Year Warranty through UNITY™ Tactical. For more info visit
